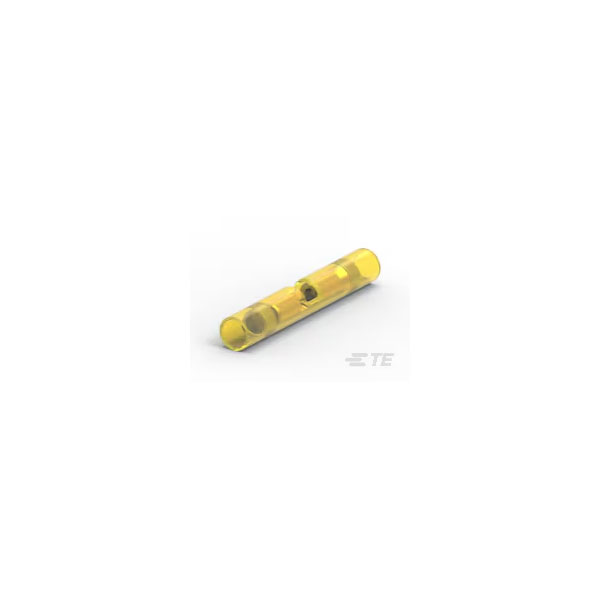

TE Connectivity 320570 Butt Splice Terminal 12-10AWG Unshrouded

MPN: 320570
Brand: TE Connectivity
Order Code: 15-2443
Country of Origin: USA

RoHS Compliant
Free UK shipping available

Inc VAT

Qty	Unit Price (Ex VAT)
150+	£1.24

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 150

Despatched within 5 working days - 2,850 in stock

Product Details

The TE Connectivity 320570 is a butt splice terminal designed for 12-10 AWG wires, unshrouded for versatility in various settings.

It offers secure electrical connections, enhancing reliability in wire splicing tasks.

This component is commonly used in automotive, industrial, and electrical applications.

Its robust design ensures durability and efficient conductivity.

Type	Splices
Max Wire Size	5180 – 13100
Insulation	Fully Insulated
Colour	Yellow - Translucent
Barrel Type	Closed
Body Material	Copper
Body Plating	Tin
Color	Yellow, Clear
Compatible Insulation Diameter Range	.22
Contact Base Material	Copper
Contact Material	Copper
Contact Plating	Tin
Diameter	5.59mm
ELV	Compliant
Gender	Female
Government Qualified	Yes
Insulation Color	Yellow
Insulation Diameter	0.22inch
Insulation Material	Nylon
Jacket Material	Polyamide
Length	42.06mm
Material	Copper, Tin, Nylon
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Wire Entries	2
Orientation	Straight
Pack Qty	50
Package Quantity	50
Packaging	Loose Piece
Packaging Method	Loose Piece
Plating	Tin
Product Length	1.65
Product Weight	3.8
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Sealable	No
Series	PIDG
Terminal Plating Material	Tin
Termination	Crimp
Voltage Rating (AC)	300v
Wire Gauge (Max)	10AWG
Wire Gauge (Min)	12AWG
Wire Insulation Support	With
Wire/Cable Gauge	10AWG
