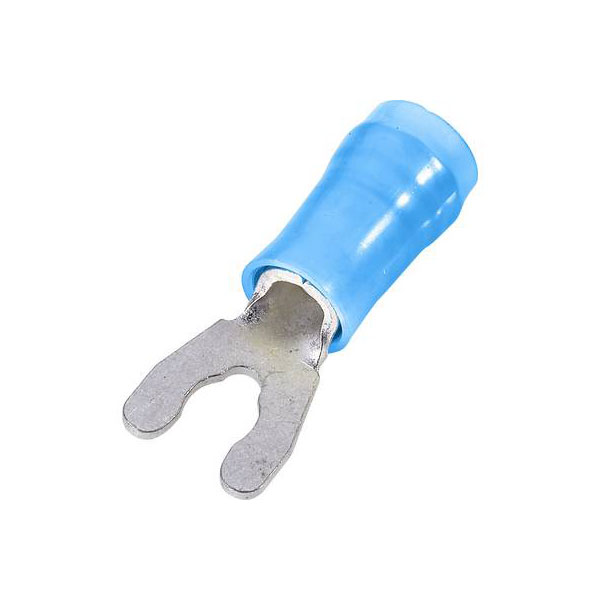

TE Connectivity 32057 is a partially insulated U terminal with a hole diameter of 3.18 mm for wire connections of 1.04 mm² to 2.602 mm² cross-sections. Manufactured by Tyco Electronics, it is typically used in electrical and electronic applications for secure and reliable connections, featuring a blue insulation for easy identification. This crimp connector is suitable for use in automotive, industrial, or domestic electrical wiring systems.
| Colour |
Blue |
| Insulation |
PA |
| Maximum Wire Size mm2 |
2.5mm² |
| Maximum Wire Size AWG |
14 |
| Barrel Type |
Closed |
| Body Material |
Copper |
| Body Plating |
Tin |
| Color |
Blue |
| Compatible Insulation Diameter Range |
.105 – .15 |
| Contact Material |
Copper |
| Contact Plating |
Tin |
| Cross-section range |
1.04 - 2.602mm² |
| Depth |
9.78mm |
| Dimensions |
(23.06, 18.19, 7.92, 4.75 mm) |
| ELV |
Compliant |
| Factory colour |
Blue |
| Government Qualified |
No |
| Heavy Duty |
No |
| Hole Ø |
3.18mm |
| Insulated Wire Support |
Yes |
| Insulation Color |
Blue |
| Insulation Diameter |
0.15inch |
| Insulation Material |
Nylon |
| Insulation Option |
Partially Insulated |
| Lead Free |
Not Applicable |
| Length |
23.06mm |
| Material |
Copper |
| max. cross section |
2.602mm² |
| Min. cross section |
1.04mm² |
| Misc Attribute |
PIDG |
| Mount |
Free Hanging |
| Operating Temperature Range |
0 – 221 |
| Orientation |
Straight |
| Package Quantity |
1000 |
| Packaging |
Box |
| Packaging Method |
Box |
| Packaging Quantity |
1000 |
| Plating |
Tin |
| Product Length |
.908 |
| Product Weight |
1.073 |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
Unknown |
| RoHS Compliant |
Yes |
| Sealable |
No |
| Series |
PIDG |
| Shrouded |
No (Without) |
| Stud Diameter |
4.82mm |
| Stud Size |
M5 |
| Support sleeve |
Yes |
| Terminal Orientation |
Straight |
| Terminal Plating Material |
Tin |
| Termination |
Standard |
| Thickness |
0.84mm |
| Thread Size |
M3 |
| Tongue Thickness |
0.84mm |
| Type |
Fork Terminals |
| Voltage Rating (AC) |
300v |
| Width |
9.53mm |
| Wire Gauge (Max) |
14AWG |
| Wire Gauge (Min) |
16AWG |
| Wire Insulation Support |
With |
| Wire/Cable Diameter |
3.81mm |
