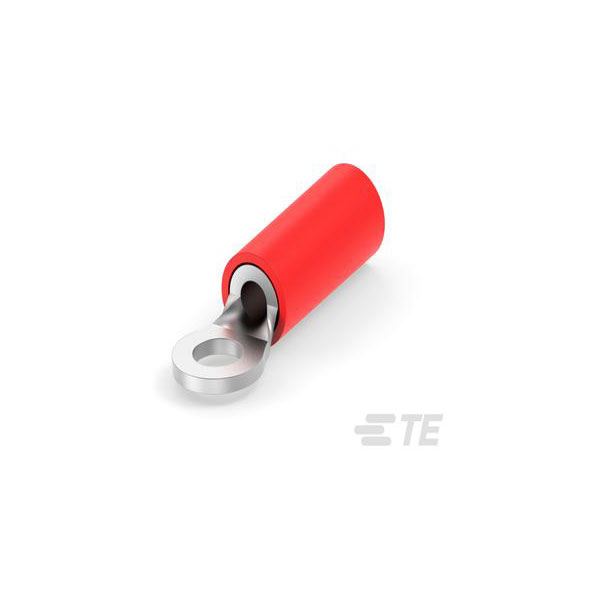

TE Connectivity's 320553 is a ring terminal designed for wire sizes 22-18 AWG.
It features a nylon insulation with an unshrouded design in a red colour.
This terminal is suitable for secure and reliable electrical connections.
It is typically used in automotive, industrial, and electrical applications.
| Colour |
Red |
| Insulated |
Partially Insulated |
| Stud Size |
Not Specifiedmm |
| Maximum Wire Size (mm2) |
0.75mm |
| Barrel Type |
Closed |
| Body Material |
Copper |
| Body Plating |
Tin |
| Color |
Red |
| Compatible Insulation Diameter Range |
.08 – .125 |
| Contact Material |
Copper |
| Contact Plating |
Tin |
| Depth |
5.54mm |
| Finish |
Tin |
| Government Qualified |
Yes |
| Heavy Duty |
No |
| Insulated Wire Support |
Yes |
| Insulation |
Insulated |
| Insulation Color |
Red |
| Insulation Diameter |
0.125inch |
| Insulation Material |
Nylon |
| Length |
17.07mm |
| Material |
Copper |
| Maximimum Wire Gauge (AWG) |
18 |
| Mount |
Free Hanging |
| Number of Holes |
1 |
| Operating Temperature Range |
0 – 221 |
| Orientation |
Straight |
| Package Quantity |
1000 |
| Package/Case |
300 |
| Packaging |
Loose Piece |
| Packaging Method |
Loose Piece |
| Packaging Quantity |
1000 |
| Plating |
Tin |
| Product Length |
.672 |
| Product Type |
Ring Terminal |
| Product Weight |
.703 |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
No |
| RoHS Compliant |
Yes |
| Sealable |
No |
| Series |
PIDG |
| Stud Diameter |
0.119inch |
| Terminal Orientation |
Straight |
| Terminal Plating Material |
Tin |
| Termination |
Crimp |
| Tongue Thickness |
0.79mm |
| Voltage Rating |
300v |
| Width |
5.54mm |
| Wire Gauge (Max) |
22AWG |
| Wire Gauge (Min) |
16AWG |
| Wire Insulation Support |
With |
| Wire/Cable Diameter |
3.18mm |
