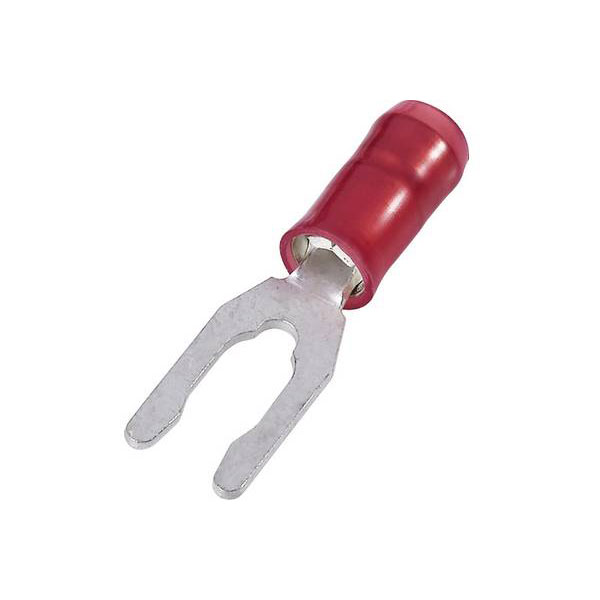

TE Connectivity's 32050 U terminal is a partially insulated red crimp connector. It supports wire sizes from 0.206 mm² to 1.605 mm² and has a 4.17 mm hole diameter. This U terminal is typically used for secure electrical connections in automotive and industrial applications.
| Colour |
Red |
| Insulation |
PA |
| Maximum Wire Size mm2 |
1.6mm² |
| Maximum Wire Size AWG |
16 |
| Barrel Type |
Closed |
| Body Material |
Copper |
| Body Plating |
Tin |
| Color |
Red |
| Compatible Insulation Diameter Range |
.08 – .125 |
| Contact Material |
Copper |
| Contact Plating |
Tin |
| Cross-section range |
0.206 - 1.605mm² |
| Depth |
9.53mm |
| Dimensions |
(23.06, 18.19, 7.92, 4.75 mm) |
| Factory colour |
Red |
| Government Qualified |
No |
| Heavy Duty |
No |
| Hole Ø |
4.17mm |
| Insulated Wire Support |
Yes |
| Insulation Color |
Red |
| Insulation Diameter |
3.175mm |
| Insulation Material |
Nylon |
| Insulation Option |
Partially Insulated |
| Jacket Material |
Polyamide |
| Length |
23.06mm |
| Material |
Copper |
| max. cross section |
1.605mm² |
| Maximum Operating Temperature |
105°C |
| Min. cross section |
0.206mm² |
| Minimum Operating Temperature |
-55°C |
| Misc Attribute |
PIDG |
| Mount |
Free Hanging |
| Operating Temperature Range |
0 – 221 |
| Package Quantity |
1000 |
| Packaging |
Loose Piece |
| Packaging Method |
Loose Piece |
| Packaging Quantity |
1000 |
| Plating |
Tin |
| Product Length |
.908 |
| Product Weight |
.957 |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
No |
| RoHS Compliant |
Yes |
| Sealable |
No |
| Series |
PIDG |
| Stud Diameter |
4.17mm |
| Stud Size |
M4 |
| Support sleeve |
Yes |
| Terminal Material |
Copper |
| Terminal Orientation |
Straight |
| Terminal Plating Material |
Tin |
| Termination |
Crimp |
| Thread Size |
M4 |
| Tongue Thickness |
0.84mm |
| Type |
Fork Terminals |
| Voltage Rating (AC) |
300v |
| Width |
9.53mm |
| Wire Gauge (Max) |
16AWG |
| Wire Gauge (Min) |
22AWG |
| Wire Insulation Support |
With |
| Wire/Cable Diameter |
3.18mm |
