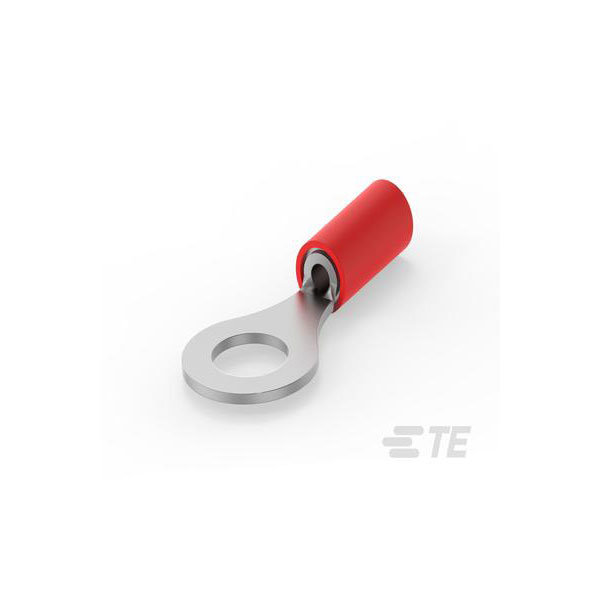

The TE Connectivity 31894 PIDG ring terminal is designed for unshrouded connections with wire sizes from 22 to 16 AWG.
This terminal features a 1/4-inch stud size, providing reliable and secure electrical connections.
It is often used in automotive, industrial, and household electrical applications.
The durable construction ensures excellent performance and longevity in demanding environments.
| Colour |
Red |
| Insulated |
Partially Insulated |
| Stud Size |
6.4mm |
| Maximum Wire Size (mm2) |
1.5mm² |
| Barrel Type |
Closed |
| Body Material |
Copper |
| Body Plating |
Tin |
| Color |
Red |
| Compatible Insulation Diameter Range |
.105 – .14 |
| Contact Material |
Copper, Silver |
| Contact Plating |
Tin |
| Depth |
11.91mm |
| Gender |
Female |
| Government Qualified |
Yes |
| Heavy Duty |
No |
| Insulated Wire Support |
Yes |
| Insulation |
Insulated |
| Insulation Color |
Red |
| Insulation Diameter |
0.14inch |
| Insulation Material |
Nylon |
| Length |
1.078inch |
| Material |
Copper, Tin, PVC |
| Maximimum Wire Gauge (AWG) |
16 |
| Mount |
Free Hanging |
| Number of Holes |
1 |
| Operating Temperature Range |
0 – 221 |
| Orientation |
Straight |
| Package Quantity |
1000 |
| Packaging |
Loose Piece |
| Packaging Method |
Loose Piece |
| Packaging Quantity |
1000 |
| Plating |
Tin |
| Product Length |
1.078 |
| Product Type |
Ring Terminal |
| Product Weight |
1.278 |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
Unknown |
| RoHS Compliant |
Yes |
| Sealable |
No |
| Series |
PIDG |
| Stud Diameter |
0.265inch |
| Terminal Orientation |
Straight |
| Terminal Plating Material |
Tin |
| Termination |
Crimp |
| Tongue Thickness |
0.79mm |
| Voltage Rating (AC) |
300v |
| Wire Gauge (Max) |
16AWG |
| Wire Gauge (Min) |
22AWG |
| Wire Insulation Support |
With |
| Wire/Cable Diameter |
3.56mm |
