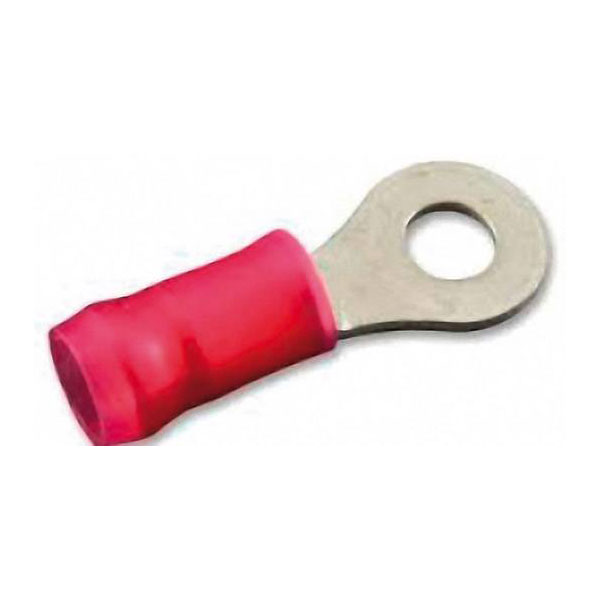

The TE Connectivity 31886 PIDG R 22-16 Male Connector is an unshrouded connector designed for cables with 22-18 AWG sizes.
It ensures reliable performance with its high-quality materials.
Commonly used in automotive and industrial applications, it provides secure connections.
The connector's durable construction supports long-term use in various environments.
| Colour |
Red |
| Insulated |
Partially Insulated |
| Stud Size |
4.3mm |
| Maximum Wire Size (mm2) |
1.5mm² |
| AWG (min.) |
22 |
| Barrel Type |
Closed |
| Body Material |
Copper |
| Body Plating |
Tin |
| Color |
Red |
| Compatible Insulation Diameter Range |
.105 – .14 |
| Contact Material |
Copper |
| Contact Plating |
Tin |
| Cross-section range |
0.206 - 1.605 mm² |
| Depth |
7.14mm |
| Dimensions |
(L x E x C x W) (20.24 x 16.61 x 6.35 x 7.14)mm |
| ELV |
Compliant |
| Gender |
Female |
| Government Qualified |
No |
| Heavy Duty |
No |
| Hole Ø |
4.34mm |
| Insulated Wire Support |
Yes |
| Insulation |
Insulated |
| Insulation Color |
Red |
| Insulation Diameter |
0.14inch |
| Insulation Material |
Nylon |
| Lead Free |
Lead Free |
| Length |
20.24mm |
| Material |
Copper |
| Max Operating Temperature |
105°C |
| max. cross section |
1.605mm² |
| Maximimum Wire Gauge (AWG) |
16 |
| Min. cross section |
0.206mm² |
| Misc Attribute |
PIDG |
| Mount |
Free Hanging |
| Number of Holes |
1 |
| Operating Temperature Range |
0 – 221 |
| Orientation |
Straight |
| Package Quantity |
1000 |
| Packaging |
Loose Piece |
| Packaging Method |
Loose Piece |
| Packaging Quantity |
1000 |
| Plating |
Tin |
| Product Length |
.797 |
| Product Type |
Ring Terminal |
| Product Weight |
.876 |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
No |
| RoHS Compliant |
Yes |
| Sealable |
No |
| Series |
PIDG |
| Stud Diameter |
4.34mm |
| Support sleeve |
Yes |
| Terminal Orientation |
Straight |
| Terminal Plating Material |
Tin |
| Termination |
Crimp |
| Thickness |
0.79mm |
| Thread Size |
M4 |
| Tongue Thickness |
0.79mm |
| Voltage Rating (AC) |
300v |
| Wire Gauge (Max) |
22AWG |
| Wire Gauge (Min) |
16AWG |
| Wire Insulation Support |
With |
| Wire/Cable Diameter |
0.14inch |
