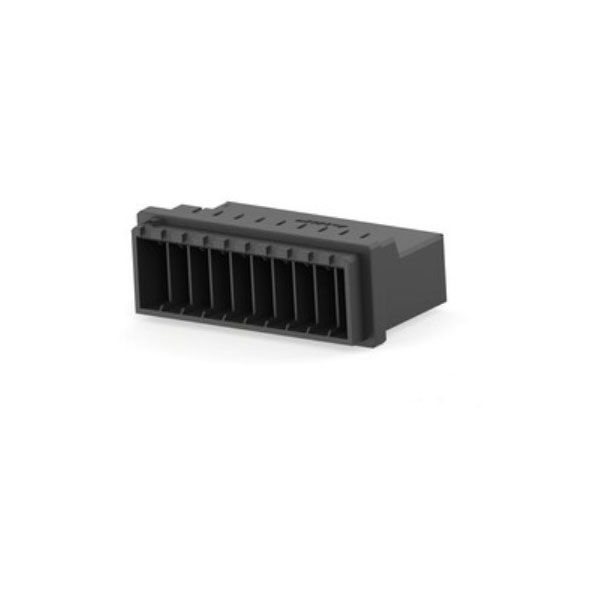

The TE Connectivity 3-917242-8 is a 12-position connector housing from the Dynamic 3200 Series, designed for wire-to-wire power and signal connections in industrial and electronic equipment.
The housing accepts male crimp terminals and features a dual-row configuration with a 5.08mm pitch, providing a secure and reliable interconnection solution for higher-current applications.
Incorporating a mating retention feature and crimp termination system, the housing is suitable for use in control panels, automation equipment and power distribution assemblies.
Key Features
- Dynamic 3200 Series connector housing
- 12 positions arranged in 2 rows
- 5.08mm pitch (0.2in)
- Housing for male crimp terminals
- Wire-to-wire connector system
- Crimp termination method
- Integrated mating retention feature
- Suitable for systems rated up to 600V
- Designed for power and signal connections
- Compatible with Dynamic 3000/3200 Series contacts and accessories
| Mounting Type |
Termination |
| Plug / Socket |
Plug |
| No. of Contacts |
20 |
| Approvals |
UL |
| Centerline (Pitch) |
5.08mm |
| Circuit Application |
Power & Signal |
| Color |
Black |
| Connector & Contact Terminates To |
Wire & Cable |
| Connector & Housing Type |
Housing for Male Terminals |
| Connector Mounting Type |
Cable Mount (Free-Hanging) |
| Connector Product Type |
Housing |
| Connector System |
Wire-to-Wire |
| Contact Gender |
Male |
| Contact Material |
Copper Alloy |
| Contact Plating |
Tin |
| Contact Type |
Tab |
| Current Rating |
3A |
| Depth |
33.6mm |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-0 |
| Gender |
Male |
| Height |
33.6mm |
| Housing Color |
Black |
| Length |
56.75mm |
| Mating Retention |
With |
| Max Voltage Rating (AC) |
600V AC |
| Maximum Operating Temperature |
221°C |
| Minimum Operating Temperature |
-67°C |
| Mount |
Free Hanging, Cable |
| Number of Contacts |
20 |
| Number of pins |
20 |
| Number of Positions |
20 |
| Number of Rows |
2 |
| Number of Ways |
20 |
| Operating Temperature Range |
-67 – 221 |
| Orientation |
Straight |
| Package Quantity |
90 |
| Packaging |
Bag |
| Pitch |
5.08 |
| Preloaded |
No |
| Primary Product colour |
Black |
| Primary Type |
CONNECTOR |
| Radiation Hardening |
No |
| RoHS Compliant |
Yes |
| Row Spacing |
5.08mm |
| Row-to-Row Spacing |
.2 |
| Sealable |
No |
| Selectively Loaded |
No (Without) |
| Series |
Dynamic 3500 |
| Termination |
Crimp |
| Termination Method to Wire & Cable |
Crimp |
| Total no. of pins |
20 |
| Type |
Plug |
| VDE Tested |
No |
| Voltage Rating |
600V AC |
| Width |
0.847inch |
| Wire/Cable Gauge |
16AWG |
