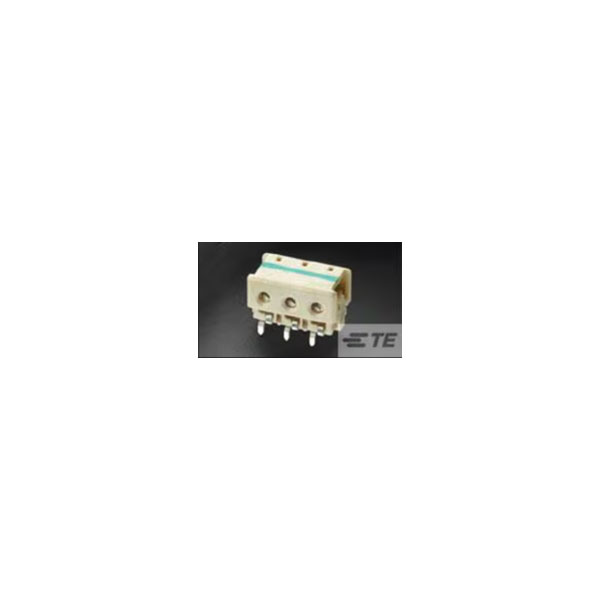

TE Connectivity 3-2106489-2 is a male connector designed for through-hole mounting.
It supports 2 positions and accommodates 24 AWG wires.
This IDC connector is ideal for secure and reliable electrical connections.
Typical applications include electronic devices and wiring systems.
| Type |
Poke-In Connectors |
| Number of Ways |
2 |
| Pitch |
1.27mm |
| Number of Rows |
1 |
| Mounting Type |
Cable (IDC) |
| Strain Relief |
No (Without) |
| Approvals |
CSA |
| Centerline (Pitch) |
101.6mm |
| Circuit Application |
Power |
| Colour |
Natural |
| Connector & Contact Terminates To |
Printed Circuit Board |
| Connector Height |
5.8 |
| Connector Mounting Type |
Board Mount |
| Connector System |
Wire-to-Board |
| Contact Current Rating |
6a |
| Contact Current Rating (Max) |
6.0 |
| Contact Material |
Copper Alloy |
| Contact Plating |
Matte, Tin |
| Current Rating |
8a |
| Depth |
7.75mm |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-0 |
| Gender |
Receptacle |
| Height |
0.228inch |
| Housing colour |
Natural |
| Insulation Diameter |
1.45mm |
| Keyed |
No |
| Length |
9.7mm |
| Make First / Break Last |
No |
| Max Voltage Rating (AC) |
250v |
| Maximum Operating Temperature |
221°C |
| Minimum Operating Temperature |
-40°C |
| Mount |
Through Hole |
| Number of Contacts |
2 |
| Number of Positions |
2 |
| Operating Temperature Range |
-40 – 221 |
| Orientation |
Right Angle |
| Package Quantity |
350 |
| Packaging |
Tape and Reel |
| PCB Mount Alignment |
No (Without) |
| PCB Mount Retention |
Without |
| PCB Thickness |
0.062inch |
| Plating Thickness |
5.08um |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
Unknown |
| RoHS Compliant |
Yes |
| Termination |
Through Hole |
| Termination Method to PCB |
Through Hole - Solder |
| Voltage Rating |
250v |
| Width |
0.305inch |
| Wire Size |
24 – 22 |
| Wire/Cable Gauge |
24AWG |
| Wire/Cable Type |
Discrete |
