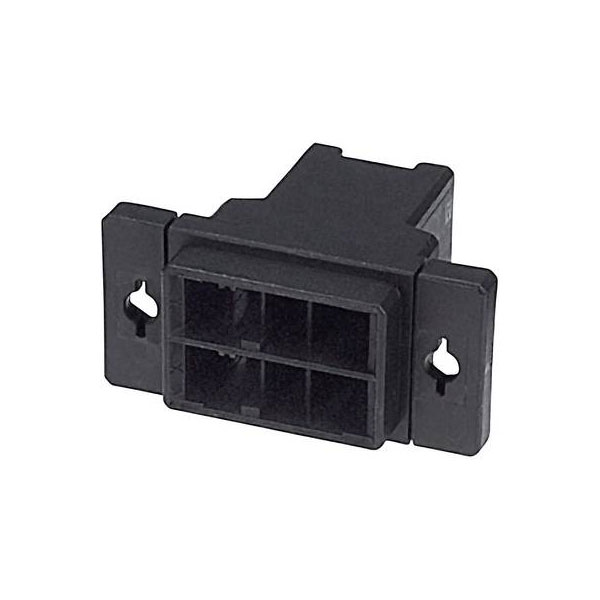

TE Connectivity's Dynamic 3000 Series pin housing cable, part number 3-179555-3, features a total of six pins, enhancing robust electrical connections in high-density applications. Designed for reliable performance, these connectors are typically used in industrial machinery and control systems. With a focus on durability and efficiency, this pin housing series supports secure and efficient electrical connectivity in demanding environments.
| Type |
Pin housing cable |
| Pitch |
5.08mm |
| Number of Ways |
6 |
| Number of Rows |
2 |
| Mounting Type |
Panel Mount |
| Approvals |
UL |
| Case Material |
Polyester |
| Circuit Application |
Power & Signal |
| Code |
XY |
| Color |
Black |
| Connector & Contact Terminates To |
Wire & Cable |
| Connector & Housing Type |
Housing for Male Terminals |
| Connector contact surface |
Tin plated |
| Connector Product Type |
Housing |
| Connector System |
wire-to-board |
| Contact Gender |
Male |
| Contact Type |
Male Pin |
| Depth |
33.6mm |
| Dim |
(L x W x H) 20.32 x 41.91 x 33.6 mm |
| ELV |
Compliant |
| Factory colour |
Black |
| Flammability Rating |
UL94 V-0 |
| Gender |
Male |
| Halogen free |
Halogen Free |
| Height |
33.6mm |
| Housing Color |
Black |
| Industrial packaging |
No |
| Insulation Material |
Polyester |
| Lead Free |
Lead Free |
| Length |
20.32mm |
| Mating Retention |
With |
| Max Operating Temperature |
221°C |
| Max Voltage Rating (AC) |
600v |
| Max. temperature |
+105°C |
| Min Operating Temperature |
-67°C |
| Min. temperature |
-55°C |
| Misc Attribute |
D-3200S |
| Mount |
Panel, Cable |
| Number of Contacts |
6 |
| Number of Positions |
6 |
| Operating Supply Voltage |
600v |
| Operating Temperature Range |
-67 – 221 |
| Orientation |
Straight |
| Package Quantity |
150 |
| Packaging |
Bag |
| Pin shape |
Rectangular |
| Pins per row |
3 |
| Plug / Socket |
Plug, mount |
| Preloaded |
No |
| Primary Product colour |
Black |
| Primary Type |
CONNECTOR |
| RoHS Compliant |
Yes |
| Row Spacing |
7.62mm |
| Row-to-Row Spacing |
.299 |
| Sealable |
No |
| Selectively Loaded |
No (Without) |
| Series |
DYNAMIC 3000 Series |
| Termination |
Crimp |
| Termination Method to Wire & Cable |
Crimp |
| Total number of pins |
6 |
| VDE Tested |
No |
| Width |
41.91mm |
| Wire/Cable Gauge |
16AWG |
