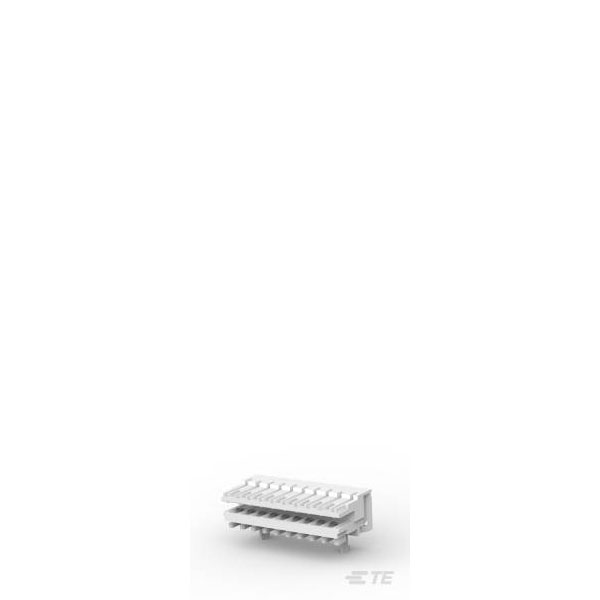

The TE Connectivity RAST 2.5 connector, model 3-1534796-9, is designed for reliable electrical connections. It features a compact design suitable for use in restricted spaces and supports efficient automated assembly processes. These connectors are commonly used in household appliances and automotive industry applications.
| Type |
Standard Edge Connectors |
| Number of Contacts |
9 |
| Number of Rows |
1 |
| Centerline (Pitch) |
2.4892mm |
| Circuit Application |
Signal |
| Colour |
Natural |
| Compatible Insulation Diameter Range |
.047 – .063 |
| Connector & Contact Terminates To |
Printed Circuit Board |
| Connector & Housing Type |
Receptacle |
| Connector Contact Load Condition |
Fully Loaded |
| Connector Height |
.287 |
| Connector Mounting Type |
Cable Mount (Free-Hanging) |
| Connector System |
Wire-to-Board |
| Contact Base Material |
Copper Tin |
| Contact Current Rating |
2a |
| Contact Current Rating (Max) |
2 |
| Contact Material |
Copper, Tin |
| Contact Mating Area Plating Material |
Tin (Sn) |
| Contact Mating Area Plating Material Thickness |
3 – 6 |
| Contact Plating |
Tin |
| Contact Retention |
Yes (With) |
| Contact Retention Within Housing |
With |
| Contact Type |
Socket |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-2 |
| Glow Wire Rating |
GWEPT 750°C (Without Flame) |
| Height |
0.287inch |
| Housing Color |
Natural |
| Housing Material |
PA 6 GF |
| Insulation Diameter |
1.6mm |
| Mating Alignment |
With |
| Mating Alignment Type |
Keyed |
| Mating Retention |
Without |
| Max Operating Temperature |
110°C |
| Min Operating Temperature |
-40°C |
| Misc Attribute |
TE AMP RAST 2.5 Connectors |
| Mount |
Free Hanging, Cable |
| Operating Supply Voltage |
250v |
| Operating Temperature Range |
-40 – 230 |
| Operating Voltage |
50 |
| Orientation |
Right Angle |
| Package Quantity |
1540 |
| Packaging |
Tray |
| Packaging Method |
Tray |
| Packaging Quantity |
1540 |
| Packaging Type |
Tray |
| PCB Contact Termination Area Plating Material |
Tin |
| PCB Mount Alignment |
Without |
| PCB Mount Orientation |
Right Angle |
| PCB Mount Retention |
Without |
| PCB Mounting Orientation |
Right Angle |
| PCB Thickness |
0.059inch |
| PCB Thickness (Recommended) |
.059 |
| Pitch |
2.5mm |
| Plating Thickness |
6um |
| Preloaded |
Yes |
| RoHS Compliant |
Yes |
| Selectively Loaded |
No (Without) |
| Series |
DuoPlug |
| Termination |
IDC |
| Termination Method to Wire & Cable |
Insulation Displacement (IDC) |
| UL Flammability Rating |
UL 94V-2 |
| Wire Gauge (Max) |
24AWG |
| Wire Gauge (Min) |
22AWG |
| Wire Size |
24 – 22 |
| Wire/Cable Type |
Discrete |
