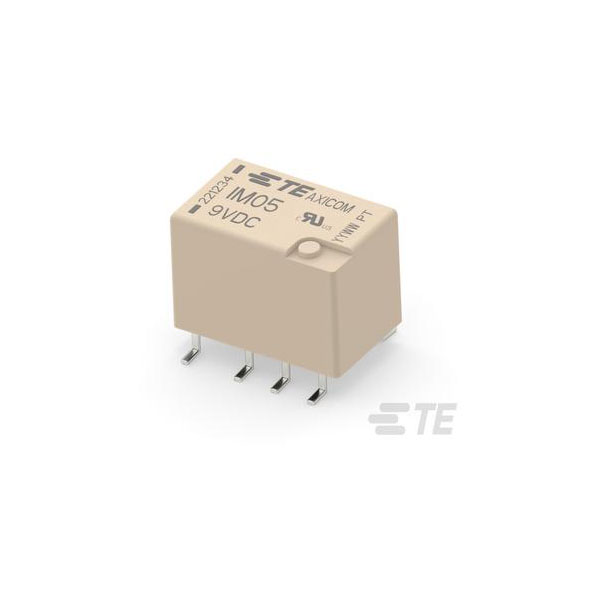

TE Connectivity 3-1462037-4 RF Relay 2 Form C DPDT Momentary 9V 0.016A

Inc VAT

Qty	Unit Price (Ex VAT)
1000+	£3.25

Sign in for personalised pricing

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 1000

Available to back orderBack-order availability date - 13/11/2026

The TE Connectivity 3-1462037-4 is an RF relay with 2 Form C double-pole double-throw (DPDT) contacts.

It operates momentarily with a voltage of 9V and a current of 0.016A.

This compact component is designed for use in telecommunications and signal switching applications.

It ensures reliable performance in high-frequency RF circuits.

Type	Signal Relays
Coil Voltage	9V
Contact Configuration	DPDT
Switching Current	0.016A
Coil Resistance	579r
Length	10.0mm
Width	6mm
Height	5.6mm
Actuating System	DC
Coil Current	15.67mA
Coil Power	140mW
Coil Voltage (DC)	9v
Contact Current Rating	2a
Contact Material	Gold, Ruthenium
Contact Plating	Gold
Contact Voltage Rating (DC)	220v
Depth	7.5mm
Insertion Loss	-0.03dB
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Operate Time	1ms
Package Quantity	1000
Package/Case	SMD/SMT
Packaging	Tape and Reel
Relay Type	Relay
RoHS Compliant	Yes
Termination	PCB
Throw Configuration	DPDT
Voltage Rating (AC)	250v
Weight	0.75oz
