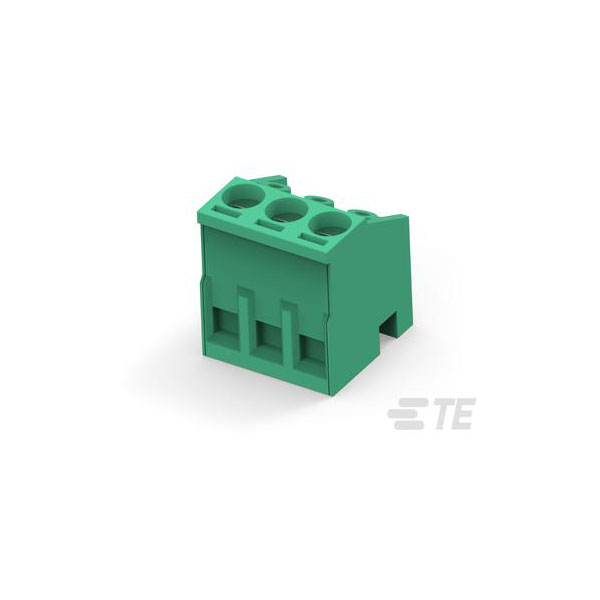

The TE Connectivity 282830-3 TERMI-BLOK plug is a male unshrouded connector designed for both 90 and 180-degree orientations.
It provides reliable electrical connections and is commonly used in industrial and commercial applications.
The compact design ensures easy integration into various systems.
This connector is ideal for systems requiring secure and efficient plug-and-play functionality.
| Pitch |
5.0038mm |
| No of Ways Per Row |
3 |
| No. of Rows |
1 |
| Current Rating |
12A |
| Colour |
Green |
| Wire Gauge (AWG) |
30 to 12 AWG |
| Wire Gauge (mm²) |
2.5mm² |
| Circuit Application |
Power & Signal |
| Color |
Green |
| Connector & Contact Terminates To |
Wire & Cable |
| Connector System |
Wire-to-Board |
| Contact Base Material |
Phosphor Bronze |
| Contact Material |
Bronze |
| Contact Mating Area Plating Material |
Tin (Sn) |
| Contact Plating |
Tin |
| Current |
12a |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-0 |
| Housing Color |
Green |
| Housing Material |
PA 66 |
| Interlock |
No (Without) |
| Lead Free |
Not Applicable |
| Max Current Rating |
12a |
| Max Operating Temperature |
105°C |
| Max Voltage Rating (AC) |
300v |
| Min Operating Temperature |
-40°C |
| Mount |
Free Hanging, Cable |
| Number of Circuits |
3 |
| Number of Contacts |
3 |
| Number of Levels |
1 |
| Number of Positions |
3 |
| Number of Positions Per Level |
3 |
| Number of Rows |
1 |
| Operating Temperature Range |
-40 – 221 |
| Operating Voltage |
300 |
| Orientation |
Straight/Right Angle |
| Package Quantity |
200 |
| Packaging |
Bulk |
| Packaging Quantity |
200 |
| Primary Product colour |
Green |
| Product Orientation |
Straight |
| Radiation Hardening |
No |
| RoHS Compliant |
Yes |
| Screw Flange |
No (Without) |
| Screwless Terminal Block |
Yes (With) |
| Series |
Buchanan |
| Shrouded |
No (Without) |
| Side Stackable |
No (Without) |
| Termination |
Screw |
| Termination Method to Wire & Cable |
Clamp & Screw |
| Thread Size |
M3 |
| Voltage |
300v |
| Voltage Rating (AC) |
300v |
| Wire Gauge (Max) |
30AWG |
| Wire Gauge (Min) |
30AWG |
