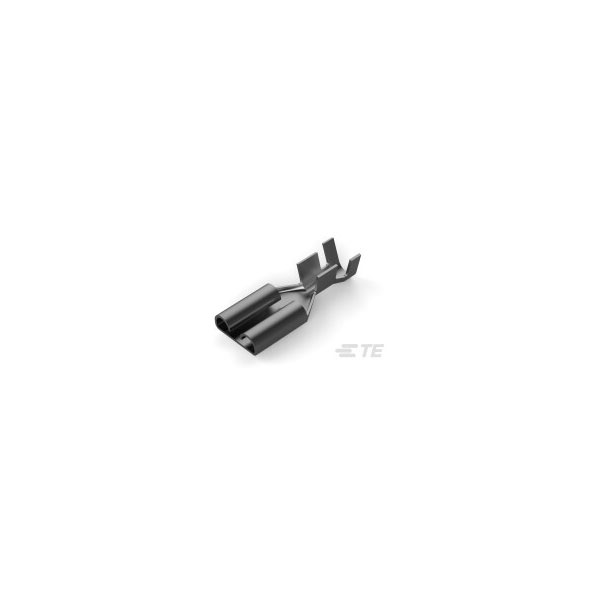

TE Connectivity 280223-2 is a faston female terminal designed for wire sizes ranging from 4 to 6 mm².
With a length of 27 mm, it features a tab receptacle for secure connections.
The terminal is ideal for automotive and appliance applications, where reliable electrical connections are essential.
Constructed for robust performance, it ensures durability and efficiency in various electrical systems.
| Insulation |
Non-Insulated |
| Tab Width |
0.375inch |
| Tab Thickness |
0.047inch |
| Gender |
Female |
| Barrel Type |
Open |
| Compatible Insulation Diameter Range |
.15 – .2 |
| Compatible With Agency/Standards Products |
CSA |
| Contact Base Material |
Brass |
| Contact Plating |
Tin |
| Crimp Type |
F-Crimp |
| ELV |
Compliant |
| Insulated Wire Support |
Yes |
| Insulation Diameter |
5.08mm |
| Insulation Option |
Uninsulated |
| Lead Free |
Not Applicable |
| Length |
1.07inch |
| Material |
Brass |
| Mating Retention Type |
Dimple |
| Mating Tab Thickness |
.048 |
| Mating Tab Width |
.375 |
| Mount |
Free Hanging |
| Operating Temperature Range |
-40 – 230 |
| Package Quantity |
2000 |
| Packaging |
Tape and Reel |
| Packaging Method |
Strip/Reel |
| Packaging Quantity |
2000 |
| Plating |
Tin |
| Plating Thickness |
1um |
| Product Length |
1.07 |
| Product Terminates To |
Wire & Cable |
| Radiation Hardening |
No |
| RoHS Compliant |
Yes |
| Series |
Faston™ |
| Tab Length |
0.469inch |
| Terminal Orientation |
Straight |
| Terminal Plating Material |
Tin |
| Termination |
Receptacle |
| Type |
Quick Disconnects |
| Wire Gauge (Max) |
11AWG |
| Wire Gauge (Min) |
10AWG |
| Wire Insulation Support |
With |
| Wire Size |
11 – 9 |
| Wire/Cable Diameter |
0.2inch |
| Wire/Cable Gauge |
11AWG |
| Wire/Cable Type |
Discrete |
