TE Connectivity 2301997-7 RJ45 Jack Female Shrouded 1GB LED 2X1

TE Connectivity
Order Code:

14-6704

Brand: TE Connectivity MPN: 2301997-7
Qty Unit Price (Ex VAT)
10+ £21.30
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 10
13 in stock, despatched in 5 working days

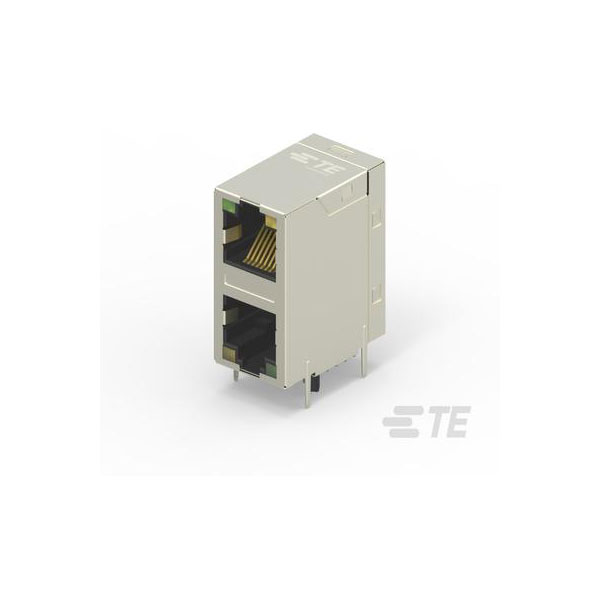

TE Connectivity's 2301997-7 is a shrouded RJ45 jack.

It supports 1GB data transmission and includes integrated LED indicators.

The jack is designed for Ethernet applications, providing reliable connectivity.

It is typically used in networking equipment and telecommunications devices.


Type RJ45 Connectors
Centerline (Pitch) 1.27mm
Circuit Application Signal
Connector & Contact Terminates To Printed Circuit Board
Connector Height 1.015
Connector Mounting Type Board Mount
Connector Profile Standard
Contact Base Material Copper Alloy
Contact Mating Area Plating Material Gold (Au)
Contact Mating Area Plating Material Thickness 30
Contact Underplating Material Nickel
Housing Material LCP
Number of Positions 8
Operating Temperature Range -40 – 185
Packaging Method Tray
Packaging Quantity 40
PCB Contact Termination Area Plating Material Tin
PCB Contact Termination Area Plating Material Finish Matte
PCB Mount Orientation Right Angle
PCB Mount Retention Type Boardlock
Shielded Yes
Termination Method to PCB Through Hole - Solder
Termination Post & Tail Length .035
UL Flammability Rating UL 94V-0
