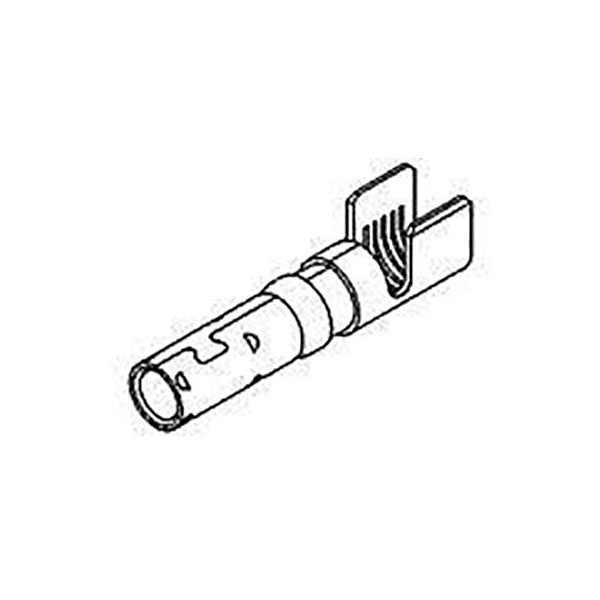

TE Connectivity 213847-3 Bullet Connector Socket Single Piece

TE Connectivity offers the 213847-3 bullet connector socket, designed for secure and reliable electrical connections. It features a robust design suitable for a variety of automotive and industrial applications. This component is ideal for use in environments requiring durable, low-resistance connections.

Type	Bullet connector
Wire Gauge (AWG)	14 - 12
Contact Finish	Copper silver plated
Circuit Application	Power
Connection Angle	180°
Connector System	Wire-to-Board
Connector Type	Socket
Contact Base Material	Copper
Contact Current Rating (Max)	50
Contact Gender	Female
Contact Material	Copper
Contact Mating Area Plating Material	Silver (Ag)
Contact Mating Area Plating Material Finish	Semi-Bright
Contact Mating Area Plating Material Thickness	2 – 3
Contact Plating	Silver
Contact Retention Within Housing	With
Contact size	8
Contact Type	Socket
Contact Underplating Material	Nickel
Contact Underplating Material Thickness	50
Cross-section range	2 - 3mm²
Current Rating	50a
Gender	Female
Length	25.98mm
max. cross section	3mm²
Min. cross section	2mm²
Mount	Cable
Nominal Current	45A
Number of Contacts	1
Operating Temperature Range	-67 – 221
Operating Voltage	600
Orientation	Straight
Package Quantity	100
Package/Case	125
Packaging	Carton
Packaging Method	Carton
Packaging Quantity	100
Product Terminates To	Wire & Cable
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Sealable	No
Series	Multimate .125 Powerband
Shielding	Unshielded
Termination	Crimp
Termination Method to Wire & Cable	Crimp
Wire Gauge (Max)	14AWG
Wire Gauge (Min)	12AWG
Wire Insulation Support	Without
Wire Size	14 – 12
Wire/Cable Gauge	12AWG
