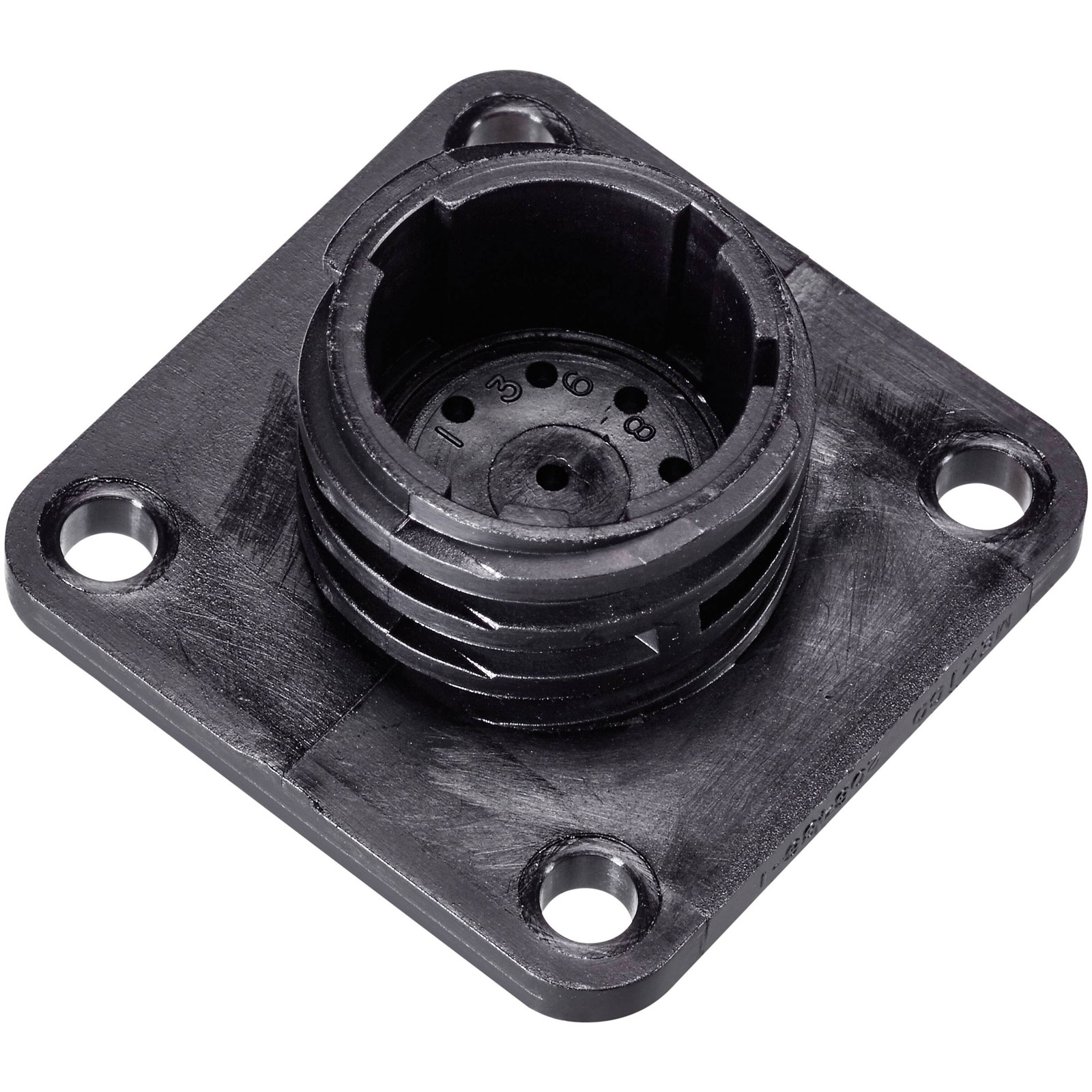

The TE Connectivity 206486-1 is a standard circular connector with a female shrouded design.
It features reliable electrical connections suitable for various industrial applications.
This connector is known for its durability and secure mating capability.
It is typically used in automotive and aerospace industries for robust connectivity solutions.
| Type |
Bullet connector |
| Number of Contacts |
9 |
| Orientation |
180° |
| Body Material |
Thermoplastic, Glass |
| Circuit Application |
Signal |
| Circular Connector Shell Size |
11 |
| Color |
Black |
| Colour |
Black |
| Compatible Insulation Diameter Range |
.068 |
| Connection |
Crimp |
| Connector & Contact Terminates To |
Wire & Cable |
| Connector & Housing Type |
Receptacle |
| Connector Mounting Type |
Panel Mount |
| Connector Product Type |
Housing |
| Connector System |
Wire-to-Panel |
| Connector Type |
Socket, straight |
| Contact Current Rating (Max) |
7.5 |
| Contact Gender |
Male |
| Contact Protection |
Yes (With) |
| Contact Shape |
Circular |
| Contact Type |
Pin |
| Depth |
28.58mm |
| Flammability Rating |
UL94 V-0 |
| Gender |
Receptacle |
| Height |
28.58mm |
| Housing Color |
Black |
| Housing Material |
PA 66 |
| Insulation Diameter |
0.068inch |
| Length |
20.55mm |
| Material |
Thermoplastic UL94V-1 |
| Mating Alignment |
With |
| Mating Alignment Type |
Keyed |
| Mating Retention |
With |
| Mating Retention Type |
Threaded Coupling |
| Mount |
Panel |
| Nominal Voltage |
600V |
| Number of Ports |
1 |
| Number of Positions |
9 |
| Number of Power Positions |
0 |
| Number of Signal Positions |
9 |
| Operating Temperature Range |
-67 – 221 |
| Operating Voltage |
250 |
| Package Quantity |
100 |
| Packaging |
Bag |
| Packaging Method |
Bag |
| Packaging Quantity |
100 |
| Panel Mount Feature |
With |
| Panel Mount Feature Type |
Flange with Mounting Holes |
| Plating |
Thermoplastic |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
No |
| Reverse Gender |
No |
| RoHS Compliant |
Yes |
| Seal |
Thread: 5/8 - 20 UNEF 2A |
| Sealable |
No |
| Series |
CPC |
| Shell Material |
Thermoplastic |
| Shell Size |
11 |
| Shielded |
No |
| Shielding |
Unshielded |
| Strain Relief |
No (Without) |
| Termination |
Crimp |
| Thread Size |
5/8-24 UNEF-2A |
| UL Flammability Rating |
UL 94V-0 |
| VDE Tested |
No |
