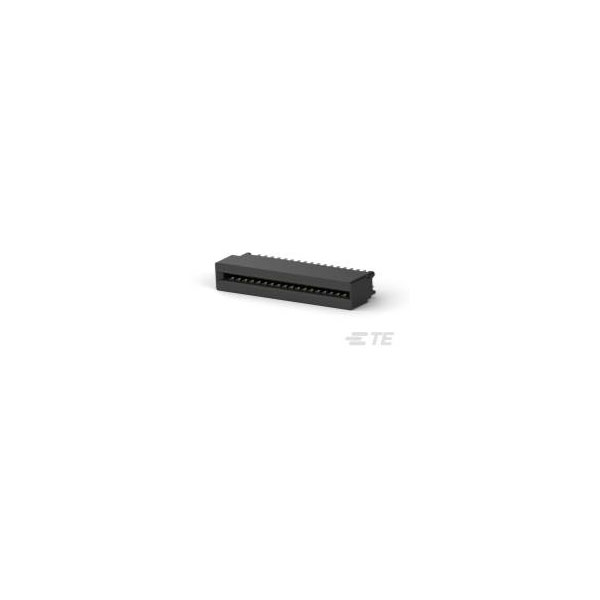

TE Connectivity's 2-5530843-7 is a standard edge connector designed for reliable electrical connections. It features durable materials and precise engineering, suitable for various industrial and electronic applications. Ideal for use in circuit boards and electronic equipment, it ensures secure and efficient connectivity.
| Type |
Card Edge Power Connectors |
| Pitch |
2.54mm |
| Number of Ways |
36 |
| Number of Rows |
2 |
| Mounting Type |
Board Mount |
| Mounting Direction |
Vertical |
| Board Thickness |
1.78mm |
| Card Thickness |
1.78mm |
| Circuit Application |
Power & Signal |
| Color |
Black |
| Connector & Contact Terminates To |
Printed Circuit Board |
| Connector & Housing Type |
Receptacle |
| Connector Height |
.75 |
| Connector System |
Board-to-Board |
| Contact Base Material |
Phosphor Bronze |
| Contact Current Rating |
3a |
| Contact Current Rating (Max) |
3 |
| Contact Material |
Bronze |
| Contact Mating Area Plating Material |
Gold (Au) |
| Contact Mating Area Plating Material Thickness |
15 |
| Contact Plating |
Gold, Tin |
| Contact Retention |
No (Without) |
| Contact Type |
Socket |
| Contact Underplating Material |
Nickel |
| Depth |
19.3mm |
| Flammability Rating |
UL94 V-0 |
| Gender |
Female |
| Height |
0.75inch |
| Housing Color |
Black |
| Housing Material |
Polyester GF |
| Insulation Material |
Glass |
| Length |
34.29mm |
| Mating Alignment |
With |
| Mating Alignment Type |
Keyed |
| Mating Retention |
Without |
| Max Voltage Rating (AC) |
400v |
| Maximum Operating Temperature |
85°C |
| Minimum Operating Temperature |
-55°C |
| Misc Attribute |
TE AMP Standard Edge Connectors |
| Mount |
Through Hole |
| Number of Contacts |
36 |
| Number of Positions |
36 |
| Number of Power Positions |
36 |
| Number of Signal Positions |
0 |
| Operating Supply Voltage |
400v |
| Operating Temperature Range |
-67 – 185 |
| Operating Voltage |
400 |
| Orientation |
Straight |
| Package Quantity |
180 |
| Packaging |
Box |
| Packaging Method |
Box |
| Packaging Quantity |
180 |
| Packaging Type |
Box |
| PCB Contact Termination Area Plating Material |
Tin |
| PCB Contact Termination Area Plating Material Finish |
Matte |
| PCB Contact Termination Area Plating Material Thickness |
100 |
| PCB Mount Alignment |
Without |
| PCB Mount Retention |
With |
| PCB Mount Retention Type |
Solder Tail |
| PCB Mounting Orientation |
Vertical |
| Plating |
Gold |
| Plating Thickness |
380nm |
| Primary Product colour |
Black |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
Unknown |
| RoHS Compliant |
Yes |
| Row Spacing |
4.85mm |
| Row-to-Row Spacing |
.191 |
| Selectively Loaded |
No (Without) |
| Series |
Standard Edge II |
| Termination |
Solder |
| Termination Method to PCB |
Through Hole - Solder |
| Termination Post & Tail Length |
.125 |
| UL Flammability Rating |
UL 94V-0 |
| Underplate Material |
Nickel |
| Voltage Rating |
400v |
| Width |
6.35mm |
