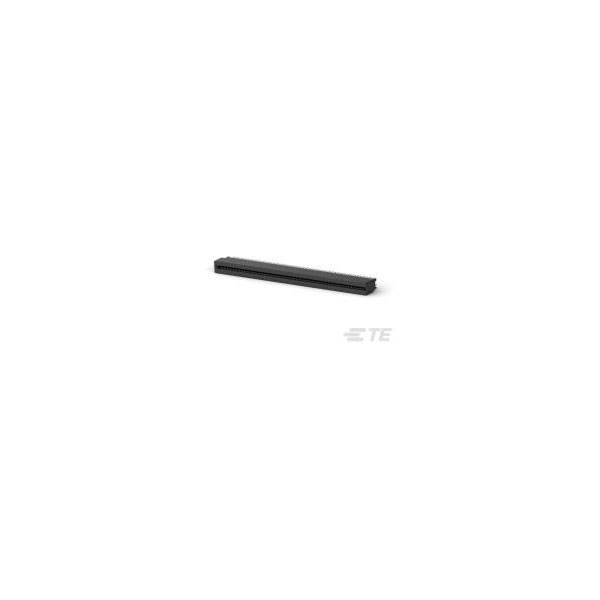

TE Connectivity 2-5530843-2 Sec II Edge Connector 50 Pos 100 C/L

TE Connectivity's 2-5530843-2 is a standard edge connector known for its durability and reliability. This component features robust construction, making it suitable for a variety of industrial and commercial electronics applications. It is commonly used in circuit board connections where efficient and secure electrical connections are required.

Type	Card Edge Power Connectors
Pitch	2.54mm
Number of Ways	100
Number of Rows	2
Mounting Type	Board Mount
Mounting Direction	Vertical
Card Thickness	1.78mm
Circuit Application	Power & Signal
Color	Black
Connector & Contact Terminates To	Printed Circuit Board
Connector & Housing Type	Receptacle
Connector Height	.73
Connector System	Board-to-Board
Contact Base Material	Phosphor Bronze
Contact Current Rating	3a
Contact Current Rating (Max)	3
Contact Material	Bronze
Contact Mating Area Plating Material	Gold (Au)
Contact Mating Area Plating Material Thickness	30
Contact Plating	Gold, Tin
Contact Retention	No (Without)
Contact Type	Socket
Contact Underplating Material	Nickel
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Female
Height	15.61mm
Housing Color	Black
Housing Material	Polyester GF
Insulation Material	Glass
Mating Alignment	With
Mating Alignment Type	Keyed
Mating Retention	Without
Max Operating Temperature	85°C
Max Voltage Rating (AC)	400v
Min Operating Temperature	-55°C
Misc Attribute	TE AMP Standard Edge Connectors
Mount	Through Hole
Number of Positions	100
Number of Power Positions	100
Number of Signal Positions	0
Operating Supply Voltage	400v
Operating Temperature Range	-67 – 185
Operating Voltage	400
Orientation	Straight
Package Quantity	72
Packaging	Bulk
Packaging Method	Package
Packaging Quantity	72
Packaging Type	Package
PCB Contact Termination Area Plating Material	Tin
PCB Contact Termination Area Plating Material Finish	Matte
PCB Contact Termination Area Plating Material Thickness	100
PCB Mount Alignment	Without
PCB Mount Retention	With
PCB Mount Retention Type	Solder Tail
PCB Mounting Orientation	Vertical
Plating	Gold
Plating Thickness	760nm
Primary Product colour	Black
RoHS Compliant	Yes
Row Spacing	4.85mm
Row-to-Row Spacing	.191
Selectively Loaded	No (Without)
Series	Standard Edge II
Termination	Solder
Termination Method to PCB	Through Hole - Solder
Termination Post & Tail Length	.187
UL Flammability Rating	UL 94V-0
Underplate Material	Nickel
Voltage Rating	400v
