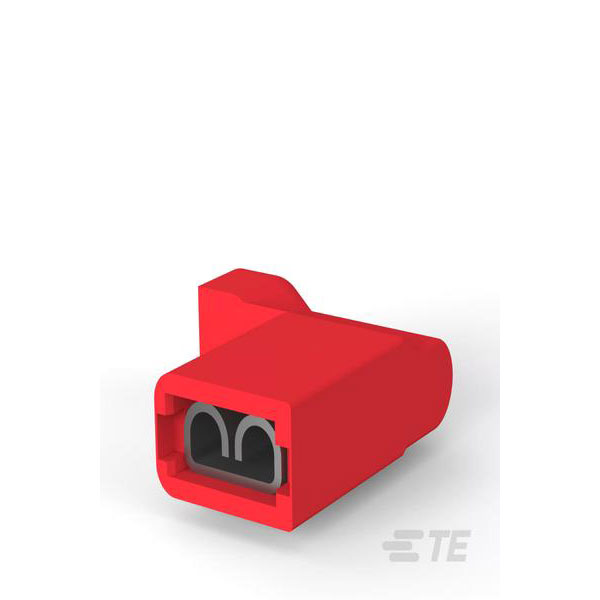

The TE Connectivity 2-520335-2 is a faston Female Unshrouded Quick Disconnect Terminal.
It features a tin-plated material and accommodates wire sizes between 18 and 14 AWG.
Designed for easy and reliable connections, it is used in applications such as automotive and household appliances.
This terminal provides efficient and secure fastening without the need for tooling.
| Insulation |
Insulated |
| Colour |
Red |
| Tab Width |
4.75mm |
| Tab Thickness |
0.51mm |
| Gender |
Female |
| Barrel Type |
Closed |
| Body Material |
Brass |
| Body Plating |
Tin |
| Compatible Insulation Diameter Range |
.165 |
| Compatible With Agency/Standards Products |
UL |
| Contact Base Material |
Brass |
| Contact Plating |
Tin |
| Crimp Type |
F-Crimp |
| Depth |
13.08mm |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-2 |
| Insulated Wire Support |
Yes |
| Insulation Colour |
Red |
| Insulation Diameter |
4.19mm |
| Insulation Material |
Nylon |
| Insulation Option |
Fully Insulated |
| Length |
0.515inch |
| Material |
Brass |
| Mating Retention Type |
Dimple |
| Mating Tab Thickness |
.02 |
| Mating Tab Width |
.187 |
| Mount |
Free Hanging |
| Operating Temperature Range |
-40 – 230 |
| Orientation |
Right Angle |
| Package Quantity |
1000 |
| Packaging |
Bag |
| Packaging Method |
Loose Piece/Carton |
| Packaging Quantity |
1000 |
| Plating |
Tin |
| Product Length |
.515 |
| Product Terminates To |
Wire & Cable |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
Unknown |
| RoHS Compliant |
Yes |
| Series |
Ultra-Fast |
| Size |
0.02inch |
| Terminal Material |
Brass |
| Terminal Orientation |
Flag |
| Terminal Plating Material |
Tin |
| Termination |
Receptacle |
| Type |
Quick Disconnects |
| UL Flammability Rating |
UL 94V-2 |
| Wire Gauge (Max) |
18AWG |
| Wire Gauge (Min) |
22AWG |
| Wire Insulation Support |
With |
| Wire Size |
22 – 18 |
| Wire/Cable Diameter |
4.19mm |
| Wire/Cable Gauge |
22AWG |
| Wire/Cable Type |
Discrete |
