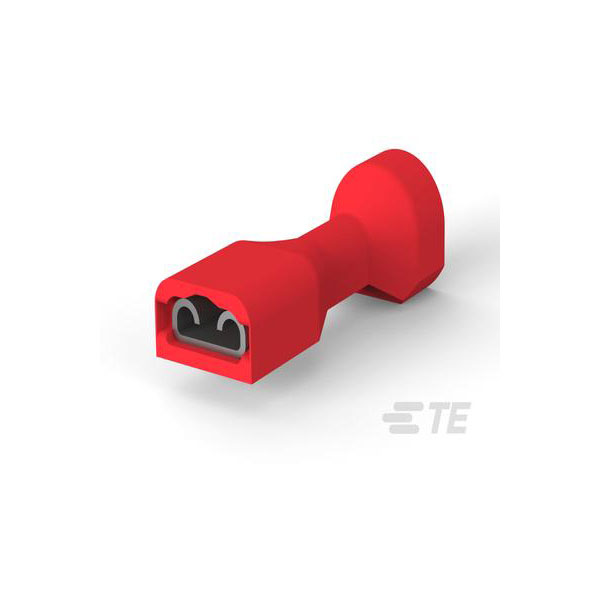

The TE Connectivity 2-520275-2 is an ultrafast female unshrouded connector.
It is designed for 22-18 AWG wire sizes and is part of the 187 series.
This connector is typically used in applications requiring quick disconnects in electrical devices.
It is suitable for both industrial and consumer electronic purposes.
| Insulation |
Insulated |
| Colour |
Red |
| Gender |
Female |
| Barrel Type |
Closed |
| Body Material |
Brass |
| Body Plating |
Tin |
| Compatible Insulation Diameter Range |
.23 |
| Compatible With Agency/Standards Products |
UL |
| Contact Base Material |
Brass |
| Contact Plating |
Tin |
| Crimp Type |
F-Crimp |
| Depth |
8.53mm |
| Flammability Rating |
UL94 V-2 |
| Insulated Wire Support |
Yes |
| Insulation Colour |
Red |
| Insulation Diameter |
5.84mm |
| Insulation Material |
Nylon |
| Insulation Option |
Fully Insulated |
| Length |
0.935inch |
| Material |
Brass |
| Mating Retention Type |
Dimple |
| Mating Tab Thickness |
.032 |
| Mating Tab Width |
.187 |
| Mount |
Free Hanging |
| Operating Temperature Range |
-40 – 230 |
| Package Quantity |
1000 |
| Packaging |
Bag |
| Packaging Method |
Loose Piece/Carton |
| Packaging Quantity |
1000 |
| Plating |
Tin |
| Product Length |
.935 |
| Product Terminates To |
Wire & Cable |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
Unknown |
| RoHS Compliant |
Yes |
| Series |
Ultra-Fast |
| Size |
0.032inch |
| Terminal Material |
Brass |
| Terminal Orientation |
Straight |
| Terminal Plating Material |
Tin |
| Termination |
Receptacle |
| Type |
Quick Disconnects |
| UL Flammability Rating |
UL 94V-2 |
| Wire Gauge (Max) |
18AWG |
| Wire Gauge (Min) |
22AWG |
| Wire Insulation Support |
With |
| Wire Size |
22 – 18 |
| Wire/Cable Diameter |
0.23inch |
| Wire/Cable Gauge |
18AWG |
| Wire/Cable Type |
Discrete |
