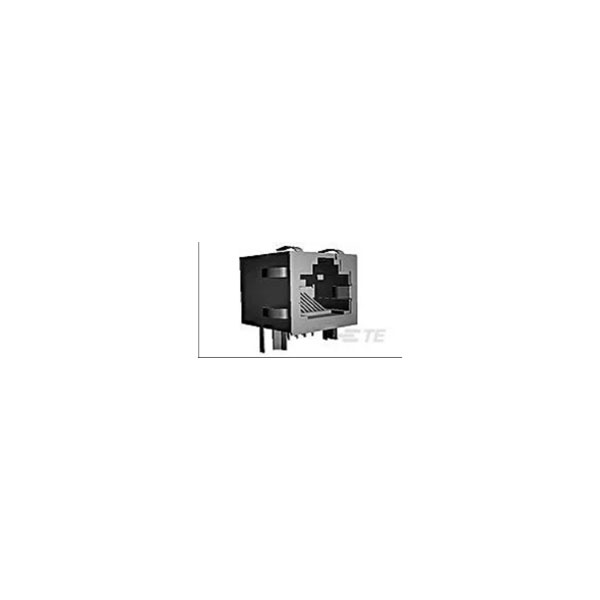

TE Connectivity 2-406541-1 Modular Connector Ethernet Female Unshrouded

MPN: 2-406541-1
Brand: TE Connectivity
Order Code: 14-2799
Country of Origin: China

RoHS Compliant
Free UK shipping available

Inc VAT

Qty	Unit Price (Ex VAT)
80+	£2.28

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 80

Despatched within 5 working days - 1,107 in stock

Product Details
Quick Quote

TE Connectivity's 2-406541-1 is a modular connector designed for Ethernet applications.

This female, unshrouded connector supports data transmission in networking environments.

Its durable construction ensures reliability in professional and industrial settings.

Common applications include use in telecommunications and data centre hardware.

Type	RJ45 Connector
Gender	Socket
Mounting Type	PCB
Shielded/Shrouded	Unshrouded
Number of Positions/ Contacts	8P8C
Centerline (Pitch)	1.016mm
Circuit Application	Signal
Connector & Contact Terminates To	Printed Circuit Board
Connector Height	.525
Connector Mounting Type	Panel Mount
Connector Product Type	Connector Assembly
Connector Profile	Standard
Contact Base Material	Phosphor Bronze
Contact Current Rating (Max)	.2
Contact Mating Area Plating Material	Gold (Au)
Contact Mating Area Plating Material Thickness	15
Contact Underplating Material	Nickel
Housing Material	High Temperature Thermoplastic
Number of Positions	8
Operating Temperature Range	-40 – 185
Packaging Method	Box & Tray
Packaging Quantity	441
Panel Mount Feature	Without
PCB Contact Termination Area Plating Material	Tin
PCB Contact Termination Area Plating Material Finish	Matte
PCB Mount Orientation	Right Angle
PCB Thickness (Recommended)	.062
Termination Method to PCB	Through Hole - Solder
Termination Post & Tail Length	.1
UL Flammability Rating	UL 94V-0
