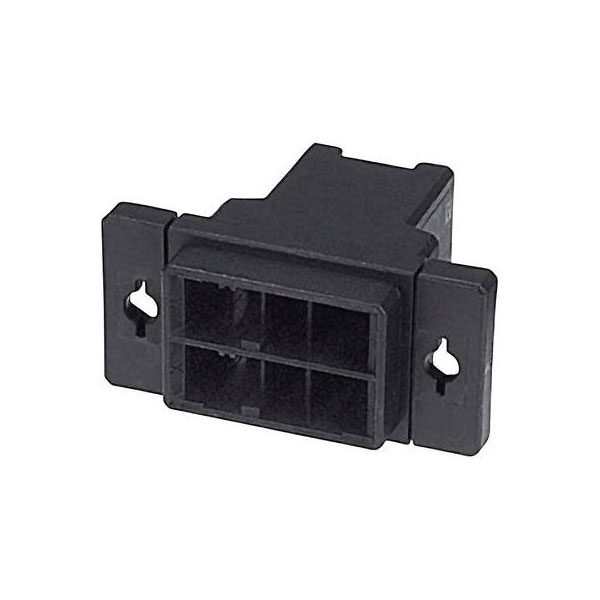

TE Connectivity's Dynamic 3000 Series pin housing cable features a total of 12 pins, ideal for secure electrical connections. It is commonly used in applications requiring reliable housing systems, such as in industrial or automotive settings. This component ensures robustness and efficiency, optimizing the functionality of electronic assemblies.
| Type |
Pin housing cable |
| Pitch |
5.08mm |
| Number of Ways |
12 |
| Number of Rows |
2 |
| Mounting Type |
Panel Mount |
| Approvals |
UL |
| Case Material |
Polyester |
| Circuit Application |
Power & Signal |
| Code |
YY |
| Color |
Black |
| Connector & Contact Terminates To |
Wire & Cable |
| Connector & Housing Type |
Housing for Male Terminals |
| Connector contact surface |
Tin plated |
| Connector Product Type |
Housing |
| Connector System |
wire-to-board |
| Contact Type |
Male Pin |
| Depth |
33.6mm |
| Dim |
(L x W x H) 20.32 x 57.91 x 33.6 mm |
| ELV |
Compliant |
| Factory colour |
Black |
| Flammability Rating |
UL94 V-0 |
| Gender |
Male |
| Halogen free |
Halogen Free |
| Height |
33.6mm |
| Housing Color |
Black |
| Industrial packaging |
No |
| Insulation Material |
Polyester |
| Lead Free |
Lead Free |
| Length |
20.32mm |
| Mating Retention |
With |
| Max Operating Temperature |
221°C |
| Max Voltage Rating (AC) |
600v |
| Max. temperature |
+105°C |
| Min Operating Temperature |
-67°C |
| Min. temperature |
-55°C |
| Misc Attribute |
D-3200S |
| Mount |
Panel, Cable |
| Number of Contacts |
12 |
| Number of Positions |
12 |
| Operating Supply Voltage |
600v |
| Operating Temperature Range |
-67 – 221 |
| Orientation |
Straight |
| Package Quantity |
80 |
| Packaging |
Bag |
| Pin shape |
Rectangular |
| Pins per row |
6 |
| Plug / Socket |
Plug, mount |
| Preloaded |
No |
| Primary Product colour |
Black |
| RoHS Compliant |
Yes |
| Row Spacing |
7.62mm |
| Row-to-Row Spacing |
.299 |
| Sealable |
No |
| Selectively Loaded |
No (Without) |
| Series |
DYNAMIC 3000 Series |
| Termination |
Crimp |
| Termination Method to Wire & Cable |
Crimp |
| Total number of pins |
12 |
| VDE Tested |
No |
| Width |
57.91mm |
| Wire/Cable Gauge |
16AWG |
