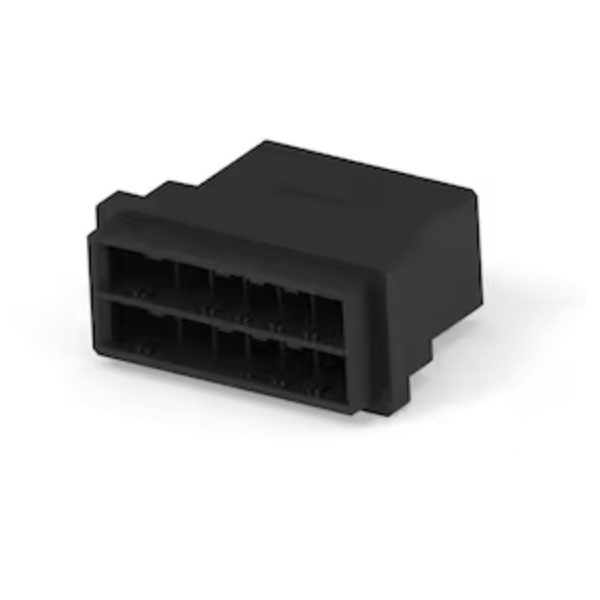

The TE Connectivity 2-179554-6 is a 12-position connector housing from the Dynamic 3000 Series, designed for secure wire-to-wire power and signal connections in industrial and electronic applications.
This dual-row housing accepts male crimp terminals and features a 5.08mm pitch, making it suitable for applications requiring higher current capacity and robust electrical performance.
The free-hanging design incorporates an integrated mating retention feature to help maintain a reliable connection in demanding environments.
Key Features
- Dynamic 3000 Series connector housing
- 12 positions arranged in 2 rows
- 5.08mm pitch (0.2in)
- Housing for male crimp terminals
- Wire-to-wire connector system
- Crimp termination method
- Free-hanging cable mount design
- Integrated mating retention feature
- Suitable for power and signal applications
- Compatible with Dynamic 3000 Series contacts and accessories
| Mounting Type |
Termination |
| Plug / Socket |
Plug |
| No. of Contacts |
12 |
| Approvals |
UL |
| Centerline (Pitch) |
5.08mm |
| Circuit Application |
Power & Signal |
| Color |
Black |
| Connector & Contact Terminates To |
Wire & Cable |
| Connector & Housing Type |
Housing for Male Terminals |
| Connector Mounting Type |
Cable Mount (Free-Hanging) |
| Connector Product Type |
Housing |
| Connector System |
Wire-to-Wire |
| Contact Type |
Male Pin |
| Depth |
3.6mm |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-0 |
| Gender |
Male |
| Height |
33.6mm |
| Housing Color |
Black |
| Length |
43.35mm |
| Mating Retention |
With |
| Maximum Operating Temperature |
221°C |
| Minimum Operating Temperature |
-67°C |
| Mount |
Free Hanging, Cable |
| Number of Contacts |
12 |
| Number of pins |
12 |
| Number of Positions |
12 |
| Number of Rows |
2 |
| Number of Ways |
12 |
| Operating Temperature Range |
-67 – 221 |
| Orientation |
Straight |
| Package Quantity |
120 |
| Packaging |
Bag |
| Pitch |
5.08 |
| Preloaded |
No |
| Primary Product colour |
Black |
| Primary Type |
CONNECTOR |
| RoHS Compliant |
Yes |
| Row Spacing |
7.62mm |
| Row-to-Row Spacing |
.299 |
| Sealable |
No |
| Selectively Loaded |
No (Without) |
| Series |
Dynamic 3200 |
| Termination |
Crimp |
| Termination Method to Wire & Cable |
Crimp |
| Total no. of pins |
12 |
| Type |
Plug |
| VDE Tested |
No |
| Voltage Rating |
600V AC |
| Width |
20.32mm |
| Wire/Cable Gauge |
16AWG |
