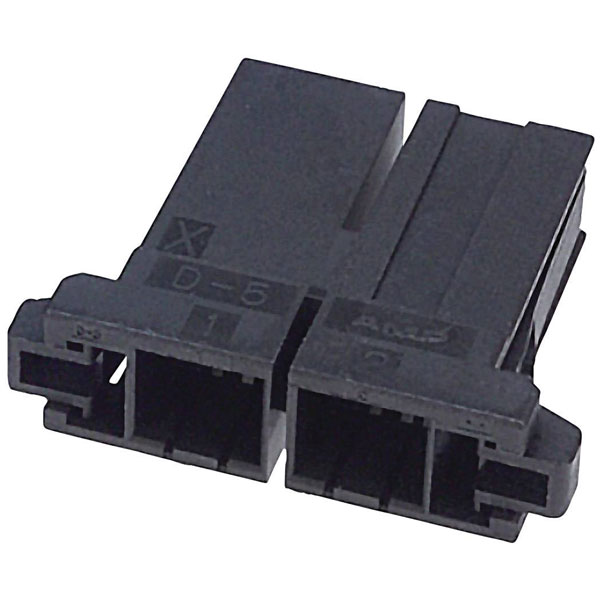

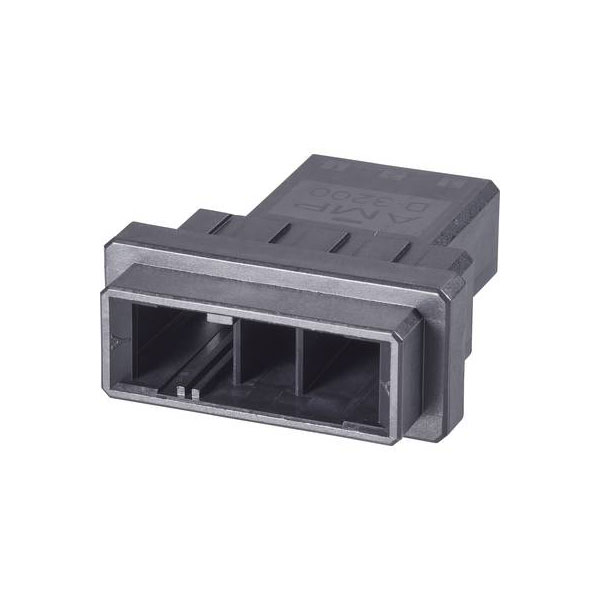

TE Connectivity manufactures the Pin Housing Cable in the Dynamic 3000 Series, featuring a total of four pins (2-179552-4). This robust component is designed for secure electrical connections typically used in industrial and electronic applications. Known for high reliability, this series can handle various voltage and current requirements within its specified range.
| Type |
Pin housing cable |
| Pitch |
5.08mm |
| Number of Ways |
4 |
| Number of Rows |
1 |
| Mounting Type |
Cable Mount (Free-Hanging) |
| Mounting Direction |
Straight |
| Approvals |
UL |
| Case Material |
Polyester |
| Circuit Application |
Power & Signal |
| Code |
Y |
| Color |
Black |
| Connector & Contact Terminates To |
Wire & Cable |
| Connector & Housing Type |
Housing for Male Terminals |
| Connector contact surface |
Tin plated |
| Connector Product Type |
Housing |
| Connector System |
wire-to-wire |
| Contact Type |
Male Pin |
| Depth |
33.6mm |
| Dim |
(L x W x H) 12.7 x 33.6 x 33.19 mm |
| ELV |
Compliant |
| Factory colour |
Black |
| Flammability Rating |
UL94 V-0 |
| Gender |
Male |
| Height |
33.19mm |
| Housing Color |
Black |
| Industrial packaging |
No |
| Insulation Material |
Polyester |
| Length |
12.7mm |
| Mating Retention |
With |
| Max Voltage Rating (AC) |
600v |
| Maximum Operating Temperature |
221°C |
| Maximum Temperature |
+105°C |
| Min. temperature |
-55°C |
| Minimum Operating Temperature |
-67°C |
| Misc Attribute |
D-3200S |
| Mount |
Free Hanging, Cable |
| Number of Contacts |
4 |
| Number of Positions |
4 |
| Operating Temperature Range |
-67 – 221 |
| Orientation |
Straight |
| Package Quantity |
150 |
| Packaging |
Bag |
| Pin shape |
Rectangular |
| Pins per row |
4 |
| Plug / Socket |
Plug, straight |
| Preloaded |
No |
| Primary Product colour |
Black |
| Primary Type |
CONNECTOR |
| RoHS Compliant |
Yes |
| Sealable |
No |
| Selectively Loaded |
No (Without) |
| Series |
DYNAMIC 3000 Series |
| Termination |
Crimp |
| Termination Method to Wire & Cable |
Crimp |
| Total number of pins |
4 |
| VDE Tested |
No |
| Width |
33.6mm |
| Wire/Cable Gauge |
16AWG |
