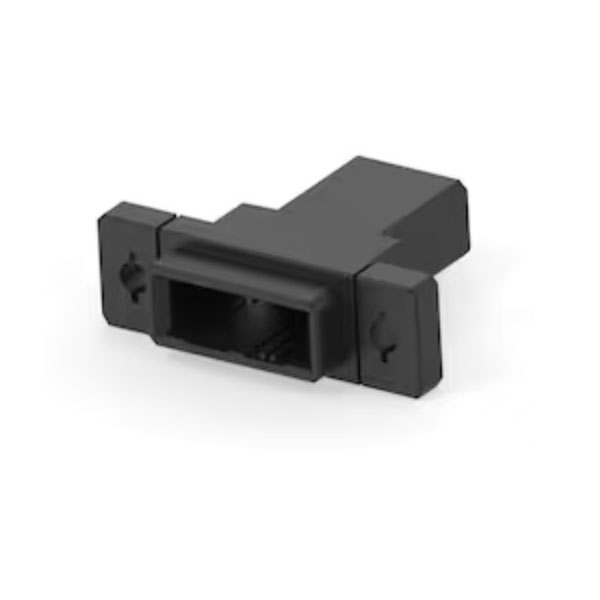

The TE Connectivity 2-178802-3 is a 3-position connector housing from the Dynamic 3000 Series, designed for dependable wire-to-wire power and signal connections in industrial and electronic equipment.
This single-row housing accepts male crimp terminals and features a 3.81mm pitch, making it suitable for compact wiring applications.
The housing incorporates a mating retention feature for secure engagement and is designed for panel-mount installation, providing a robust interconnection solution for control systems, machinery and electrical assemblies.
Key Features
- Dynamic 3000 Series connector housing
- 3 positions in a single-row configuration
- 3.81mm pitch (0.15in)
- Housing for male crimp terminals
- Wire-to-wire connector system
- Crimp termination method
- Panel-mount housing design
- Integrated mating retention feature
- Suitable for power and signal connections
- Compatible with Dynamic 3000 Series contacts and accessories
| Mounting Type |
Termination |
| Plug / Socket |
Plug |
| No. of Contacts |
3 |
| Approvals |
UL |
| Centerline (Pitch) |
3.81mm |
| Circuit Application |
Power & Signal |
| Color |
Black |
| Connector & Contact Terminates To |
Wire & Cable |
| Connector & Housing Type |
Housing for Male Terminals |
| Connector Mounting Type |
Panel Mount |
| Connector Product Type |
Housing |
| Connector System |
Wire-to-Wire |
| Contact Type |
Male Pin |
| Depth |
33.6mm |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-0 |
| Gender |
Male |
| Height |
33.6mm |
| Housing Color |
Black |
| Length |
40mm |
| Mating Retention |
With |
| Max Voltage Rating (AC) |
250V AC |
| Maximum Operating Temperature |
221°C |
| Minimum Operating Temperature |
-67°C |
| Mount |
Panel, Cable |
| Number of Contacts |
3 |
| Number of pins |
3 |
| Number of Positions |
3 |
| Number of Rows |
1 |
| Number of Ways |
3 |
| Operating Temperature Range |
-67 – 221 |
| Orientation |
Straight |
| Package Quantity |
250 |
| Packaging |
Bag |
| Pitch |
0.1499inch |
| Preloaded |
No |
| Primary Product colour |
Black |
| Primary Type |
CONNECTOR |
| Radiation Hardening |
No |
| RoHS Compliant |
Yes |
| Sealable |
No |
| Selectively Loaded |
No (Without) |
| Series |
Dynamic D-3100 |
| Termination |
Crimp |
| Termination Method to Wire & Cable |
Crimp |
| Total no. of pins |
3 |
| Type |
Plug |
| VDE Tested |
No |
| Voltage Rating |
250V AC |
| Width |
0.499inch |
| Wire/Cable Gauge |
16AWG |
