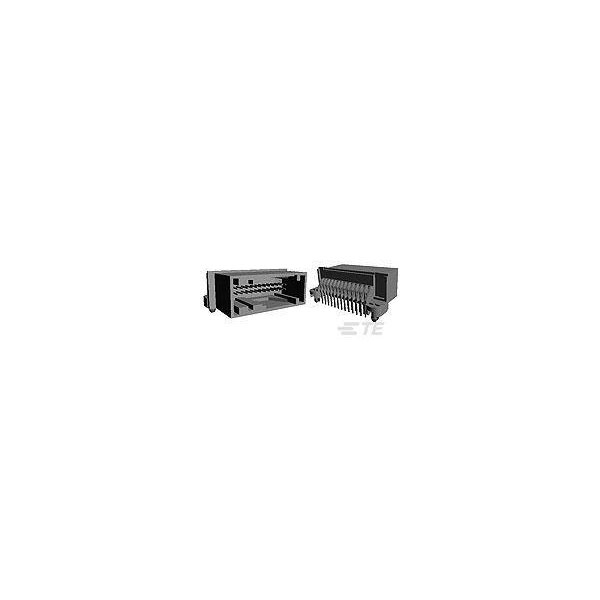

TE Connectivity 185904-2 Box Header 26pos 90deg MQS .63

Discontinued

The TE Connectivity 185904-2 is a female shrouded automotive connector with 26 ways.

It is engineered for high reliability and durability in harsh automotive environments.

The connector is designed to ensure secure electrical connections in vehicle systems.

Typical applications include use in automotive wiring harnesses and vehicle electronic systems.

Type	TE AMP MQS - Headers
Circuit Application	Signal
Colour	Blue
Contact Material	Bronze
Contact Mating Length	0.264inch
Contact Plating	Tin
Contact Type	Male Pin
ELV	Compliant
Flammability Rating	UL94 HB
Gender	Male
Length	1.898inch
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Misc Attribute	TE AMP MQS - Headers
Mount	Through Hole
Number of Contacts	26
Number of Positions	26
Number of Rows	2
Number of Signal Positions	26
Package Quantity	700
Packaging	Bulk
Packaging Type	Box
PCB Mount Alignment	No (Without)
PCB Mount Retention	With
PCB Thickness	1.6mm
Pitch	2.54
Radiation Hardening	No
RoHS Compliant	Yes
Row Spacing	0.1inch
Sealable	No (Without)
Series	Micro Quadlok
Shielding	Unshielded
Tab Thickness	0.025inch
Tab Width	0.025inch
Termination	Solder
Width	1.098inch
