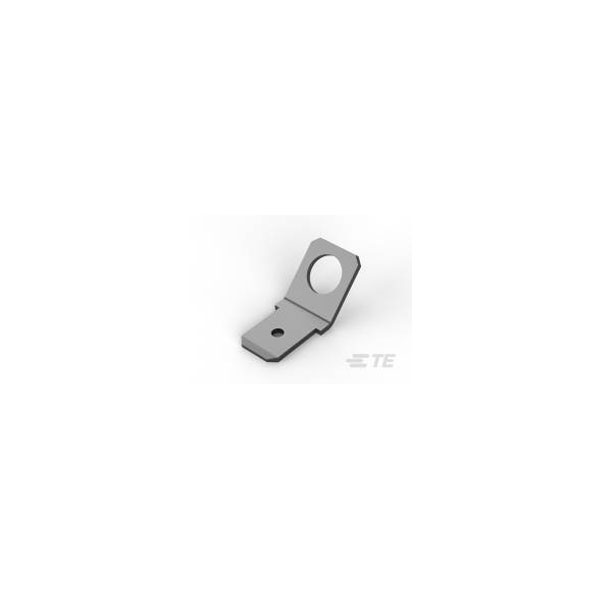

TE Connectivity 181948-2 FASTON Terminal 6.3mm 0.8x18.80mm Bag

TE Connectivity's 181948-2 is a crimp connector featuring a 6.3mm blade terminal suitable for secure electrical connections. This component is a part of the TE AMP FASTON Terminals line, known for reliability in various electrical applications. Typically used for wiring harnesses, appliances, and automotive sectors, it ensures robust and efficient connectivity solutions.

Insulation	Non-Insulated
Colour	Metal
Tab Width	0.25inch
Tab Thickness	0.032inch
Gender	Male
Compatible With Agency/Standards Products	CSA
Contact Material	Brass
Contact Mating Area Plating Material Thickness	78.74 – 393.7
Contact Plating	Tin
ELV	Compliant
Insulation Option	Uninsulated
Length	18.5mm
Material	Brass
Mating Tab Thickness	.032
Mating Tab Width	.25
Misc Attribute	TE AMP FASTON Terminals - Premier & Commercial
Mount	Chassis, Board
Operating Temperature Range	-40 – 221
Package Quantity	5000
Packaging	Bag
Packaging Method	Bag
Packaging Quantity	5000
Packaging Type	Bag
PCB Contact Termination Area Plating Material Thickness	78.74 – 393.7
Plating	Tin
Product Terminates To	Printed Circuit Board
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	Faston™
Stud Diameter	5.2mm
Tab Length	0.315inch
Terminal Material	Brass
Terminal Orientation	45 Bend
Terminal Plating Material	Tin
Termination	Screw
Termination Method to PCB	Through Hole - Screw
Type	PCB Terminals
