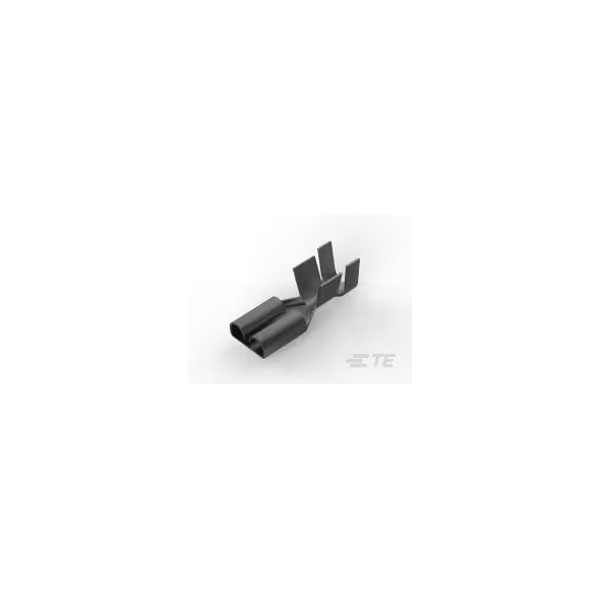

TE Connectivity, 180351-2, is a terminal designed for secure and reliable electrical connections.
It is a female, Fastin-On terminal with a 6.35 mm tab size.
The terminals come in a reel of 3000, suitable for high-volume manufacturing processes.
These are typically used in automotive and appliance applications.
| Insulation |
Non-Insulated |
| Colour |
Yellow |
| Tab Width |
6.3mm |
| Gender |
Female |
| Barrel Type |
Open |
| Body Material |
Brass |
| Body Plating |
Tin |
| Compatible Insulation Diameter Range |
.134 – .2 |
| Contact Base Material |
Brass |
| Contact Plating |
Tin |
| Crimp Type |
F-Crimp |
| Depth |
7.49mm |
| ELV |
Compliant |
| Insulated Wire Support |
Yes |
| Insulation Diameter |
0.2inch |
| Insulation Option |
Uninsulated |
| Lead Free |
Not Applicable |
| Length |
0.748inch |
| Material |
Brass |
| Mating Retention Type |
Locking Lance |
| Mating Tab Thickness |
.032 |
| Mating Tab Width |
.25 |
| Maximum Operating Temperature |
105°C |
| Minimum Operating Temperature |
-30°C |
| Mount |
Free Hanging |
| Operating Temperature Range |
-40 – 230 |
| Orientation |
Straight |
| Package Quantity |
3000 |
| Packaging |
Tape and Reel |
| Packaging Method |
Strip/Reel |
| Packaging Quantity |
3000 |
| Plating |
Tin |
| Plating Thickness |
0.8um |
| Product Length |
.748 |
| Product Terminates To |
Wire & Cable |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
No |
| RoHS Compliant |
Yes |
| Series |
Fastin-Faston |
| Terminal Material |
Brass |
| Terminal Orientation |
Straight |
| Terminal Plating Material |
Pre-Tin |
| Termination |
Receptacle |
| Type |
Quick Disconnects |
| Wire Gauge (Max) |
10AWG |
| Wire Gauge (Min) |
12AWG |
| Wire Insulation Support |
With |
| Wire Size |
11 – 9 |
| Wire/Cable Gauge |
12AWG |
