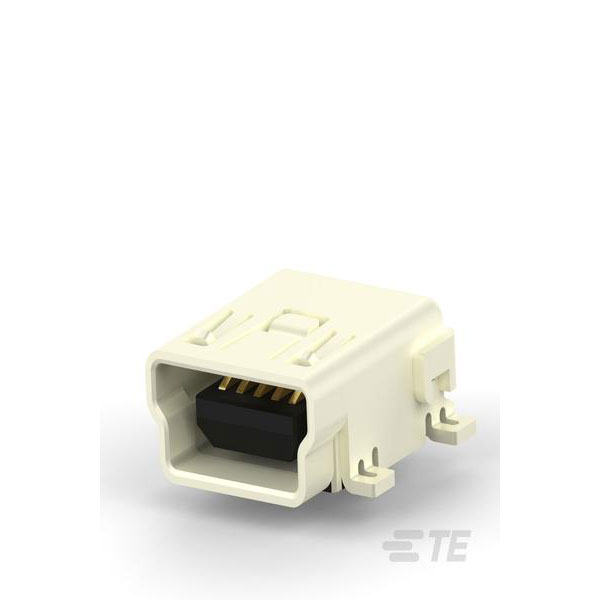

The TE Connectivity 1734035-1 is a USB connector female mini B with surface mount technology.
It is shrouded for added durability and protection.
This connector is ideal for compact electronic devices like mobile phones or portable media players.
Its design ensures reliable performance in high-density applications.
| Type |
USB Connectors |
| Gender |
Receptacle |
| Centerline (Pitch) |
0.7874mm |
| Circuit Application |
Power & Signal |
| Color |
Black |
| Connector & Contact Terminates To |
Printed Circuit Board |
| Connector & Housing Type |
Receptacle |
| Connector Mounting Type |
Board Mount |
| Connector Profile |
Mini |
| Connector System |
Cable-to-Board |
| Contact Current Rating |
1a |
| Contact Current Rating (Max) |
1 |
| Contact Material |
Bronze, Copper |
| Contact Mating Area Plating Material |
Gold Flash over Palladium Nickel |
| Contact Mating Area Plating Material Thickness |
29.92 |
| Contact Plating |
Gold |
| Current Rating |
1a |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-0 |
| Housing Color |
Black |
| Housing Material |
PA 9T GF |
| Industry Standard |
USB 2.0 |
| Insulation Color |
Black |
| Lead Free |
Lead Free |
| Length |
8.45mm |
| Mating cycles |
5000 |
| Max Operating Temperature |
85°C |
| Min Operating Temperature |
-40°C |
| Moisture Sensitivity Level |
1 |
| Mount |
Surface Mount, Horizontal |
| Number of Contacts |
5 |
| Number of Ports |
1 |
| Number of Positions |
5 |
| Operating Temperature Range |
-40 – 185 |
| Orientation |
Right Angle |
| Package Quantity |
150 |
| Packaging |
Tray |
| Packaging Method |
Tray |
| Packaging Quantity |
150 |
| PCB Mount Retention Type |
SMT Hold-Down |
| PCB Thickness |
0.062inch |
| PCB Thickness (Recommended) |
.062 |
| Pitch |
0.8mm |
| Plating |
Nickel |
| Plating Thickness |
0.76um |
| Reach SVHC Compliant |
Unknown |
| RoHS Compliant |
Yes |
| Shell Plating Material |
Nickel |
| Shielding |
Shielded |
| Termination |
SMD/SMT |
| Termination Method to PCB |
Surface Mount |
| Termination Post & Tail Length |
.045 |
| UL Flammability Rating |
UL 94V-0 |
| USB Standard |
USB 2.0 |
| Voltage Rating (AC) |
30v |
| Width |
7.7mm |
