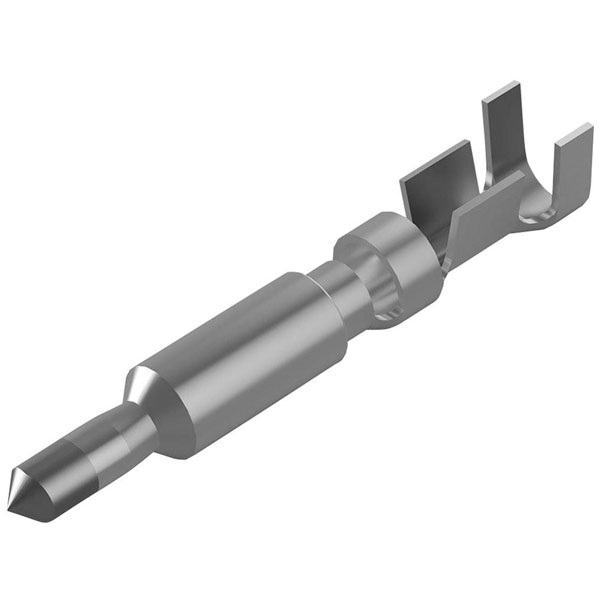

Image Representative of Range

TE Connectivity 1718760-1 MCON Contacts For Automotive Interconnection

MPN: 1718760-1
Brand: TE Connectivity
EAN-13: 2050004586152
Order Code: 07-3802
Country of Origin: Germany

RoHS Compliant
Free UK shipping available

View Full Product Range (6)

Inc VAT

Qty	Unit Price (Ex VAT)
25+	£0.128
1000+	£0.120
2500+	£0.109
5000+	£0.105

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 1

Despatched within 4 working days - 4,634 in stock

Product Details
Product Range
Data Sheets

The TE Connectivity 1718760-1 is a male unshrouded tab connector.

It features dimensions of 1.2 x 0.6 mm, providing reliable connectivity.

This component is commonly used in automotive applications, ensuring secure electrical connections.

Its design allows for easy integration into existing circuit systems.

Type	Pin
Number of Contacts	1
Gender	Male
Connection	Crimp
Connector System	wire-to-wire
Contact Material	CuNiSi
Contact Plating	Tin
Contact surface	Tin plated
Contact Type	Signal
Cross Section	0.5 - 0.75mm²
Depth	4.2mm
ELV	Compliant
Height	4.3mm
Insulation Diameter	1.9mm
Length	25.5mm
Material	Copper Alloy
Mating Tab Width	1.2mm
Maximum Operating Temperature	130°C
Maximum Temperature	+130°C
Min. temperature	-40°C
Minimum Operating Temperature	-40°C
Misc Attribute	AUTOMOTIV/ MCON INTERCONNECTION SYSTEM
Mount	Cable
Orientation	Straight
Package Quantity	6000
Packaging	Tape and Reel
Pin shape	Rectangular
RoHS Compliant	Yes
Sealable	Yes (With)
Series	MCON 1.2
Shielding	Unshielded
Termination	Crimp
Wire Gauge (AWG)	20AWG
Wire Gauge (Max)	20AWG
Wire Gauge (Min)	18AWG
