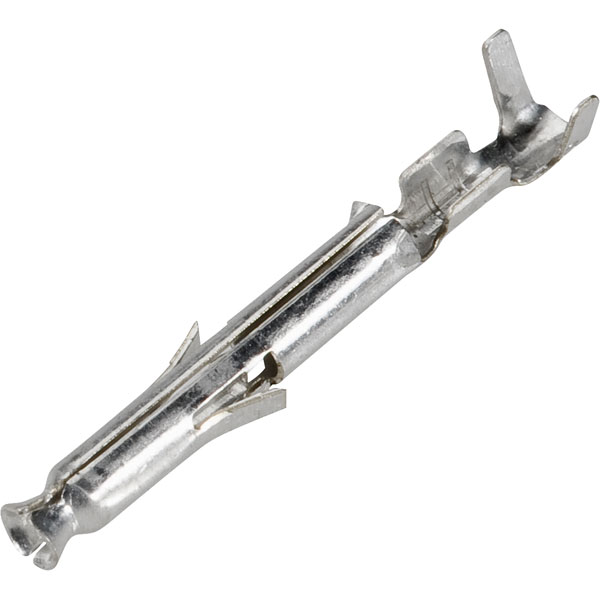

The TE Connectivity 170365-1 is a female pin socket connector designed for unshrouded applications.
It supports wire sizes ranging from 26 to 22 AWG, making it versatile for various electrical applications.
This connector is ideal for use in telecommunications and data equipment.
Its durable design ensures reliable performance in both industrial and commercial environments.
- Mini-Universal MATE-N-LOK product line
- Wire-to-wire
- Applies to wire/cable
- Standard glow wire rating
- Manufacturer's code 170365-1
| Type |
Connector Contacts |
| Pin or Socket |
Female |
| Wire Gauge |
26 - 22 |
| Approvals |
UL |
| Barrel Type |
Open |
| Circuit Application |
Power |
| Colour |
Silver |
| Compatible Insulation Diameter Range |
.047 – .069 |
| Compatible With Agency/Standards Products |
CSA |
| Connector System |
Wire-to-Wire |
| Contact Base Material |
Brass |
| Contact Current Rating |
7a |
| Contact Current Rating (Max) |
7 |
| Contact Gender |
Female |
| Contact Material |
Brass |
| Contact Mating Area Plating Material |
Tin (Sn) |
| Contact Mating Area Plating Material Thickness |
31.49 |
| Contact Plating |
Tin |
| Contact Retention Within Housing |
With |
| Contact Type |
Socket |
| Current Rating |
9.5a |
| Depth |
2.8mm |
| ELV |
Compliant |
| Gender |
Female |
| Height |
2.9mm |
| Insulation Diameter |
1.75mm |
| Length |
17.5mm |
| Max Voltage Rating (AC) |
600v |
| Maximum Operating Temperature |
105°C |
| Maximum Temperature |
+105°C |
| Maximum Wire Size AWG |
22 |
| Min. temperature |
-20°C |
| Minimum Operating Temperature |
-20°C |
| Mount |
Cable |
| Number of Contacts |
1 |
| Operating Temperature Range |
-4 – 221 |
| Operating Voltage |
600 |
| Orientation |
Straight |
| Package Quantity |
300 |
| Packaging |
Bag |
| Packaging Method |
Bag |
| Packaging Quantity |
300 |
| Pitch |
4.14 |
| Plating Thickness |
0.8um |
| Product Terminates To |
Wire & Cable |
| Reach SVHC Compliant |
No |
| RoHS Compliant |
Yes |
| Series |
Mini-Universal MATE-N-LOK |
| Shielding |
Unshielded |
| Standard |
glow wire rating |
| Termination |
Crimp |
| Termination Method to Wire & Cable |
Crimp |
| VDE Tested |
Yes |
| Voltage Rating |
600v |
| Wire Gauge (Max) |
26AWG |
| Wire Gauge (Min) |
22AWG |
| Wire Insulation Support |
Without |
| Wire Size |
26 – 22 |
| Wire/Cable Gauge |
26AWG |
| Wire/Cable Type |
Discrete |
