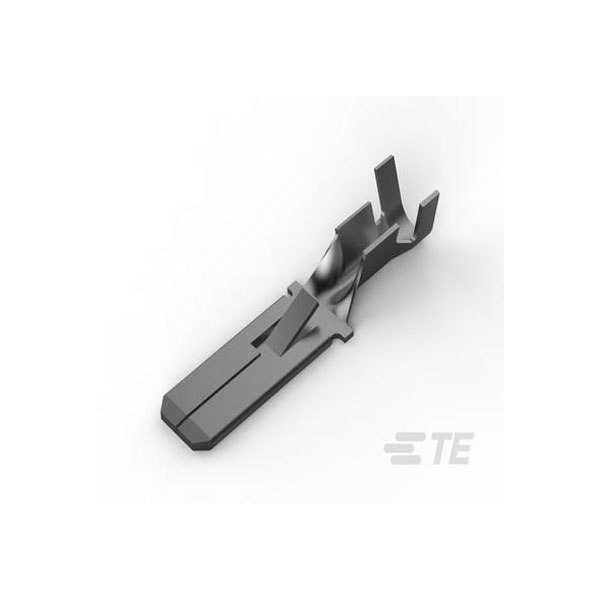

TE Connectivity's 170151-2 is a faston male unshrouded quick disconnect terminal.

It features tin plating for corrosion resistance and accommodates wire sizes from 22 to 18 AWG.

Typical applications include automotive and home appliances where quick and reliable connections are required.

The part is designed for a temperature range up to 105 degrees Celsius.

Insulation	Non-Insulated
Tab Width	0.25inch
Tab Thickness	0.032inch
Gender	Male
Barrel Type	Open
Body Material	Brass
Body Plating	Tin
Compatible Insulation Diameter Range	.12 – .16
Contact Base Material	Brass
Contact Plating	Tin
Crimp Type	F-Crimp
Depth	6.4mm
ELV	Compliant
Insulated Wire Support	Yes
Insulation Diameter	4.1mm
Insulation Option	Uninsulated
Lead Free	Not Applicable
Length	1.192inch
Material	Brass
Mating Retention Type	Locking Lance
Mating Tab Thickness	.032
Mating Tab Width	.25
Mount	Free Hanging
Operating Temperature Range	-40 – 230
Orientation	Straight
Package Quantity	3500
Packaging	Tape and Reel
Packaging Method	Strip/Reel
Packaging Quantity	3500
Plating	Tin
Product Length	1.192
Product Terminates To	Wire & Cable
RoHS Compliant	Yes
Series	Fastin-Faston
Shrouded	No (Without)
Tab Length	0.62inch
Terminal Orientation	Straight
Terminal Plating Material	Tin
Termination	Tab
Type	Crimp Contact
Wire Gauge (Max)	18AWG
Wire Gauge (Min)	14AWG
Wire Insulation Support	With
Wire Size	18 – 14
