TE Connectivity 165172 Terminals Pin Wire 16-14 AWG Tin

Inc VAT

Qty	Unit Price (Ex VAT)
300+	£0.705

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 300

Available to back orderBack-order availability date - 07/09/2026

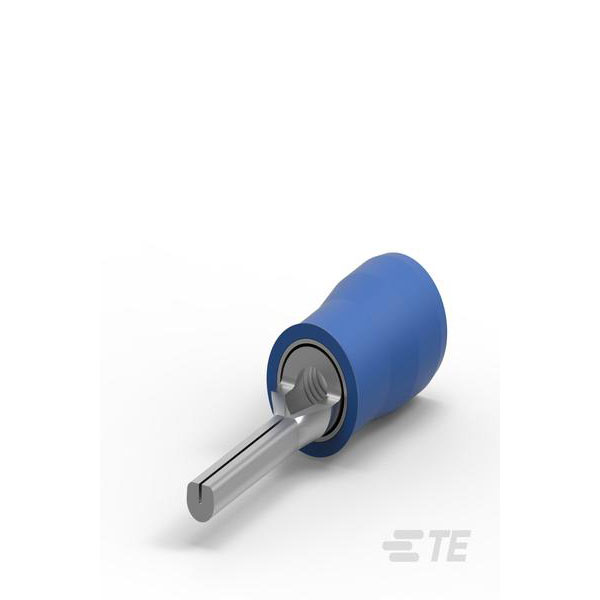

TE Connectivity 165172 is a pin terminal designed for wire sizes 16-14 AWG.

It features a tin-plated finish for enhanced corrosion resistance.

The terminal ensures secure electrical connections in various applications.

It is commonly used in automotive and electronic wiring systems.

Insulated	Yes
Colour	Blue
Maximum Wire Size mm2	2.8mm²
Barrel Type	Closed
Body Material	Copper
Body Plating	Tin
Compatible Insulation Diameter Range	.169
Contact Material	Copper, Tin
Contact Mating Area Length	.39
Contact Plating	Tin
Contact Shape & Form	Round
ELV	Compliant
Gender	Male
Heavy Duty	No
Insulated Wire Support	Yes
Insulation	Insulated
Insulation Color	Blue
Insulation Diameter	0.169inch
Insulation Material	Nylon
Insulation Option	Partially Insulated
Lead Free	Not Applicable
Length	23.6mm
Material	Copper, Tin, Nylon
Package Quantity	1000
Packaging	Box
Packaging Method	Loose Piece
Packaging Quantity	1000
Pin Diameter	1.8mm
Plating	Copper
Primary Product colour	Blue
Product Type	Pin terminal
Radiation Hardening	No
RoHS Compliant	Yes
Sealable	No
Series	PIDG
Terminal Orientation	Straight
Terminal Plating Material	Tin
Termination	Crimp
Type	Pin Terminal
Wire Gauge (Max)	16AWG
Wire Gauge (Min)	14AWG
Wire Insulation Support	With
Wire Size	2050 – 5180
