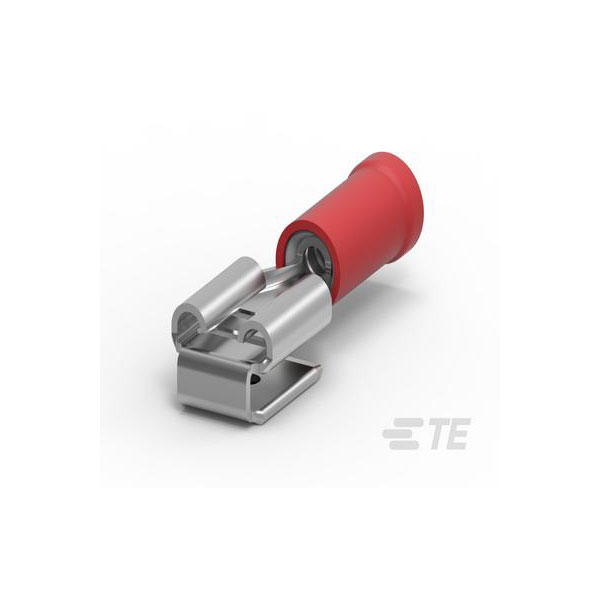

TE Connectivity 160834-2 is a female unshrouded insulated terminal.
It features a closed barrel design providing reliable electrical connections.
The terminal is designed for applications needing secure wire termination in electrical and electronic systems.
It is commonly used in automotive, industrial, and household wiring installations.
| Insulation |
Insulated |
| Tab Width |
0.25inch |
| Tab Thickness |
0.032inch |
| Gender |
FEMALE AND MALE |
| Barrel Type |
Closed |
| Body Material |
Brass |
| Body Plating |
Tin |
| Color |
Red |
| Compatible Insulation Diameter Range |
.14 |
| Contact Base Material |
Brass |
| Contact Plating |
Tin |
| Crimp Type |
Compression Crimp |
| DC Rated Voltage |
300v |
| Depth |
7.62mm |
| ELV |
Compliant |
| Insulated Wire Support |
Yes |
| Insulation Color |
Red |
| Insulation Diameter |
0.14inch |
| Insulation Material |
Nylon |
| Insulation Option |
Partially Insulated |
| Lead Free |
Lead Free |
| Length |
23.54mm |
| Material |
Brass, Tin, Nylon |
| Mating Retention Type |
Dimple |
| Mating Tab Thickness |
.032 |
| Mating Tab Width |
.25 |
| Mount |
Free Hanging |
| Orientation |
Straight |
| Package Quantity |
500 |
| Packaging |
Loose Piece |
| Packaging Method |
Loose Piece |
| Packaging Quantity |
500 |
| Plating |
Tin |
| Product Length |
.927 |
| Product Terminates To |
Wire & Cable |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
No |
| RoHS Compliant |
Yes |
| Series |
Faston, PIDG |
| Size |
0.032inch |
| Tab Length |
0.305inch |
| Terminal Material |
Brass |
| Terminal Orientation |
Piggyback |
| Terminal Plating Material |
Tin |
| Termination |
Receptacle |
| Type |
Crimp Contact |
| Voltage Rating |
300v |
| Width |
0.8mm |
| Wire Gauge (Max) |
22AWG |
| Wire Gauge (Min) |
16AWG |
| Wire Insulation Support |
With |
| Wire Size |
592 – 3260 |
