TE Connectivity 156667-1 PIDG FASTON Terminal Flag Assm 22-18

Inc VAT

Qty	Unit Price (Ex VAT)
150+	£1.13

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 150

Despatched within 5 working days - 11,320 in stock

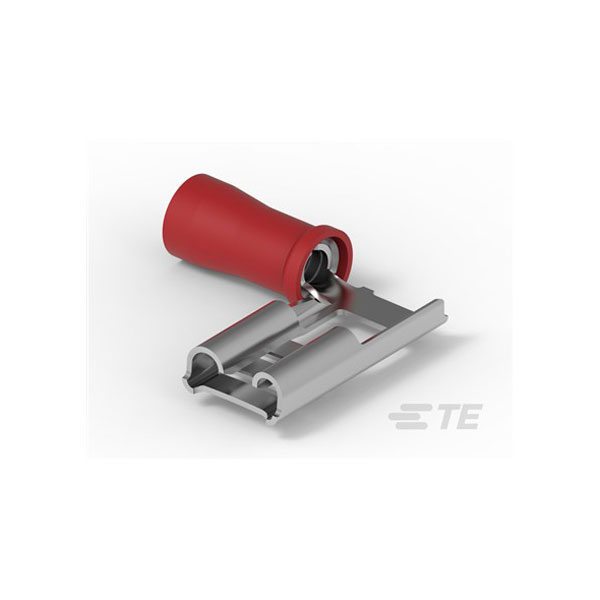

The TE Connectivity 156667-1 PIDG faston terminal flag assembly is designed for wire ranges of 22-18 AWG.

It features a tin-plated brass body for reliable electrical conduction and corrosion resistance.

This terminal is commonly used in automotive, industrial, and consumer electronics for secure and efficient wire connections.

Its flag design allows for easy connections in confined spaces.

Insulation	Insulated
Colour	Red
Tab Width	0.25inch
Tab Thickness	0.032inch
Gender	Female
Barrel Type	Closed
Compatible Insulation Diameter Range	.105 – .14
Contact Base Material	Brass
Contact Plating	Tin
Crimp Type	Compression Crimp
ELV	Compliant
Insulation Colour	Red
Insulation Diameter	3.43mm
Insulation Material	Nylon
Insulation Option	Partially Insulated
Lead Free	Not Applicable
Length	0.72inch
Material	Brass, Tin, Nylon
Mating Retention Type	Dimple
Mating Tab Thickness	.032
Mating Tab Width	.25
Mount	Free Hanging
Orientation	Right Angle
Package Quantity	1000
Packaging	Carton
Packaging Method	Carton
Packaging Quantity	1000
Plating	Tin
Product Length	.76
Product Terminates To	Wire & Cable
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Sealable	No (Without)
Series	Faston™, PIDG™
Terminal Material	Brass
Terminal Orientation	Flag
Terminal Plating Material	Tin
Termination	Crimp
Type	Crimp Terminal
UL Flammability Rating	UL 94V-2
Width	0.8mm
Wire Gauge (Max)	22AWG
Wire Gauge (Min)	18AWG
Wire Insulation Support	With
Wire Size	509 – 1900
