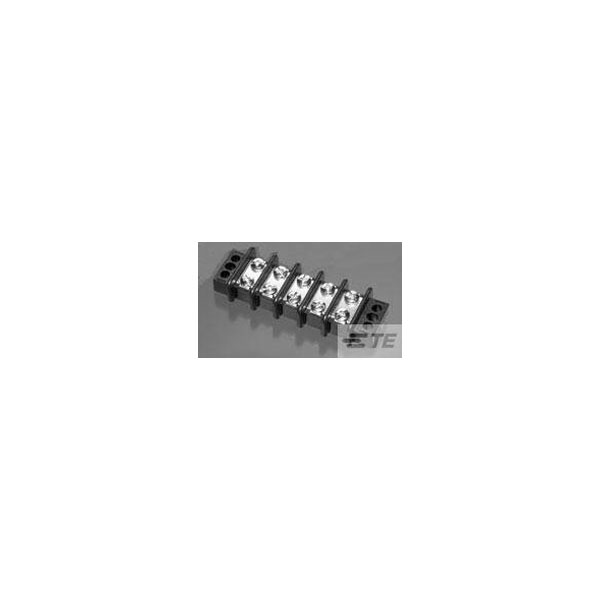

TE Connectivity 1546671-8 Barrier Terminal Block 8P Wire Clamp

TE Connectivity's 1546671-8 is a barrier style terminal block designed for secure and organised electrical connections. The block features durable construction and easy mounting for reliable use in control panels and junction boxes. Its primary applications include industrial and commercial electrical systems where efficient power distribution is critical.

Type	Barrier Strips
Number of Circuits	8
Pitch	11.1mm
Current Rating	25A
Centerline (Pitch)	11.1252mm
Circuit Application	Power
Color	Black
Connector & Contact Terminates To	Wire & Cable
Connector Mounting Type	Panel Mount
Connector System	Wire-to-Wire
Contact Base Material	Brass
Contact Current Rating (Max)	25
ELV	Compliant
Flammability Rating	UL94 V-0
Housing Color	Black
Housing Material	Thermoplastic
Insulation Material	Thermoplastic
Length	107.7mm
Max Operating Temperature	248°C
Max Voltage Rating (AC)	300v
Min Operating Temperature	-40°C
Misc Attribute	TE AMP Barrier Style Terminal Blocks
Mount	Panel, Chassis
Mounting Ears	Yes (With)
Mounting Insert	No (Without)
Number of Contacts	16
Number of levels	1
Number of Positions	8
Number of Rows	2
Number of Wire Entries	16
Operating Temperature Range	-40 – 248
Operating Voltage	300
Orientation	Straight
Package Quantity	80
Packaging	Carton
Packaging Method	Carton
Packaging Quantity	80
Packaging Type	Carton
Primary Product colour	Black
Product Length	4.24
Product Orientation	Vertical
Radiation Hardening	No
RoHS Compliant	Yes
Series	Buchanan
Terminal Material	Brass
Termination	Screw
Thread Size	6-32
UL Flammability Rating	UL 94V-0
Voltage	300v
Voltage Rating	300v
Wire Gauge	22AWG
Wire Gauge (Min)	14AWG
