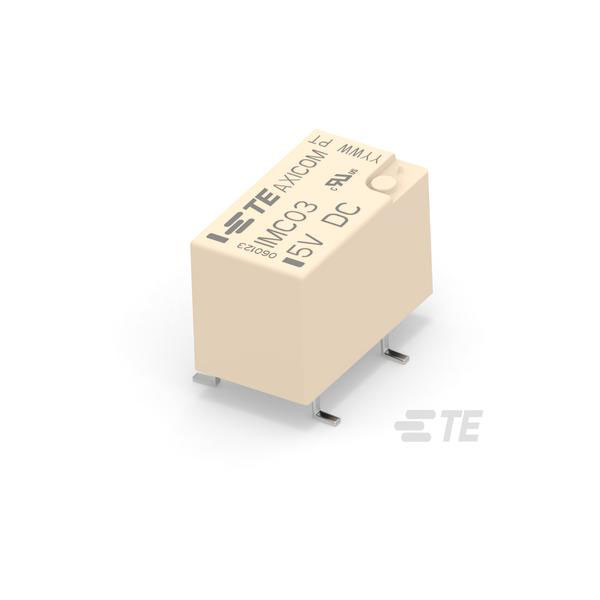

TE Connectivity 1462042-8 IMC03GR Relay Low Signal PCB SPDT 2A 5V 140mW

Inc VAT

Qty	Unit Price (Ex VAT)
1000+	£2.79

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 1000

Available to back orderBack-order availability date - 09/06/2026

TE Connectivity's 1462042-8 IMC03GR relay is a low signal PCB relay with a single pole double throw (SPDT) configuration.

It supports a current rating of 2A and operates at 5V with a low power consumption of 140mW.

The relay is commonly used in compact and efficient switching applications.

Its typical applications include telecommunications, signal processing, and automated systems.

Type	Signal Relay
Coil Voltage	5V
Contact Configuration	SPDT
Switching Current	2A
Coil Resistance	178r
Length	10.0mm
Width	6mm
Height	5.7mm
Actuating System	DC
Coil Current	28.1mA
Coil Power	140mW
Coil Type	Non-Latching
Coil Voltage (DC)	5v
Contact Current Rating	4a
Contact Material	Gold, Ruthenium
Contact Plating	Gold
Contact Voltage Rating (DC)	220v
Depth	7.5mm
Insertion Loss	-0.03dB
Max Current Rating	2a
Max Voltage Rating (AC)	250v
Max Voltage Rating (DC)	220v
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Mount	Surface Mount
Operate Time	1ms
Packaging	Tape and Reel
Relay Type	Relay
Release Time	3ms
RoHS Compliant	Yes
Series	IM, AXICOM
Termination	PCB
Throw Configuration	SPDT
Voltage Rating (AC)	250v
Weight	0.75oz
