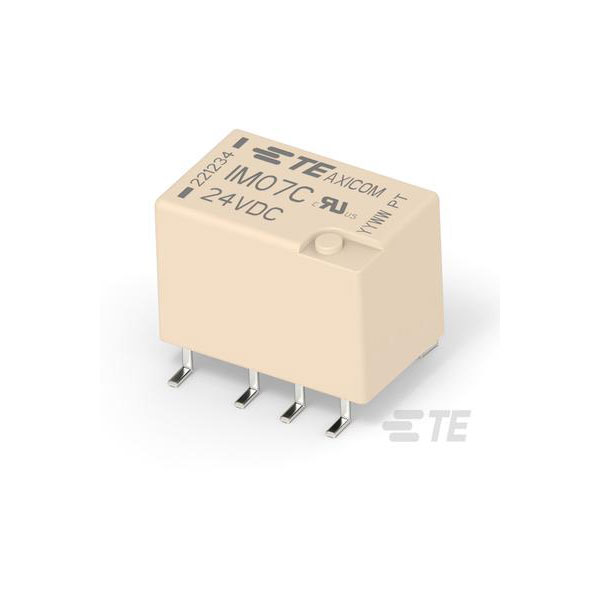

TE Connectivity 1462039-2 High Frequency RF Relay 200mW 24V

MPN: 1462039-2
Brand: TE Connectivity
Order Code: 14-9002
Country of Origin: Austria

RoHS Compliant
Free UK shipping available

Inc VAT

Qty	Unit Price (Ex VAT)
1000+	£3.11

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 1000

Despatched within 5 working days - 10,000 in stock

Product Details
Quick Quote

TE Connectivity 1462039-2 is a high-frequency RF relay with a power rating of 200mW and operates at 24V.

The relay is designed for reliable switching in radio frequency applications.

Its compact design makes it suitable for use in communication systems and test equipment.

This component ensures precise signal management in sensitive electronic devices.

Type	Signal Relay
Coil Voltage	24V
Switching Current	2A
Coil Resistance	2.88kRO
Length	10.0mm
Width	6mm
Height	5.6mm
Actuating System	DC
Coil Current	8.33mA
Coil Power	200mW
Coil Type	Non-Latching
Coil Voltage (DC)	24v
Contact Current Rating	2a
Contact Material	Gold, Ruthenium
Contact Plating	Gold
Contact Voltage Rating (DC)	220v
Current Rating	2a
Depth	6mm
ELV	Compliant
Insertion Loss	-0.03dB
Max Current Rating	2a
Max Voltage Rating (AC)	250v
Max Voltage Rating (DC)	220v
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Mount	Surface Mount, Through Hole
Number of Contacts	2
Operate Time	1ms
Package/Case	DIP
Packaging	Tape and Reel
Relay Type	Relay
Release Time	3ms
RoHS Compliant	Yes
Series	IM, AXICOM
Termination	PCB
Throw Configuration	DPDT
Voltage Rating (AC)	250v
Weight	0.75oz
