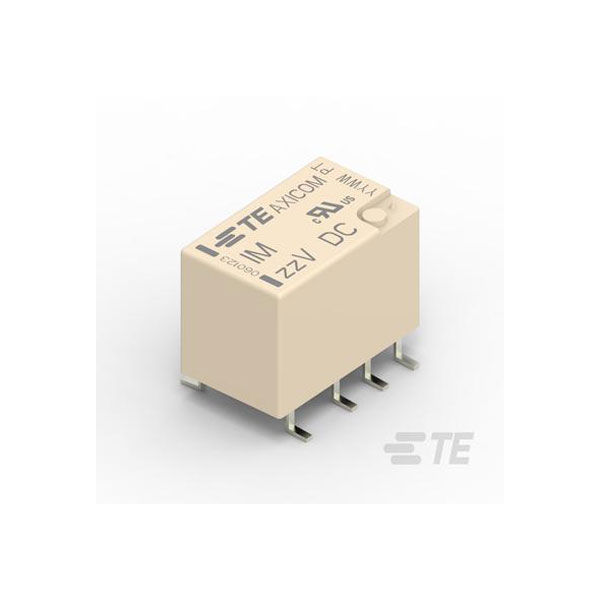

TE Connectivity 1462037-9 IM Relay 140mW 4.5V High Frequency RF Relay

TE Connectivity
Order Code:

14-9012

Brand: TE Connectivity MPN: 1462037-9
Qty Unit Price (Ex VAT)
1000+ £1.89
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1000
48,000 in stock, despatched in 5 working days

The TE Connectivity 1462037-9 is a high frequency RF relay designed for efficient switching.

Offering a coil power of 140mW and operating at 4.5 volts, it ensures reliable performance.

Its compact design makes it ideal for telecommunications and wireless applications.

This robust relay is suitable for demanding environments requiring precise signal control.


Type Signal Relay
Coil Voltage 4.5 VDCV
Switching Current 2a
Coil Resistance 145r
Length 10mm
Width 6mmmm
Height 5.65mm
Application(s) SIGNAL
Coil Current 31.03mA
Coil Power 140mW
Coil Type Non-Latching
Coil Voltage (DC) 4.5v
Contact Current Rating 2a
Contact Material Gold, Ruthenium
Contact Plating Gold
DC Rated Voltage 220v
Depth 7.5mm
ELV Compliant
Insertion Loss 0.03dB
Lead Free Lead Free
Max Current Rating 2a
Max Operating Temperature 85°C
Max Voltage Rating (AC) 250v
Max Voltage Rating (DC) 220v
Min Operating Temperature -40°C
Mount Surface Mount, PCB
Number of Poles 2
Operate Time 1ms
Package Quantity 1
Packaging Tape and Reel
Radiation Hardening No
Ratings IP67
Reach SVHC Compliant Unknown
Relay Type Telecom
Release Time 3ms
RoHS Compliant Yes
Row Spacing 5.08mm
Series IM, AXICOM
Termination Gull Wing
Throw Configuration DPDT
Voltage Rating (AC) 250v
