TE Connectivity 1461400-5 Low Signal Relay SPST NO 5A 24VDC PCB Mount

TE Connectivity
Order Code:

14-8561

Brand: TE Connectivity MPN: 1461400-5
Qty Unit Price (Ex VAT)
125+ £1.74
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 125
Available to back orderBack order, lead time 14 days

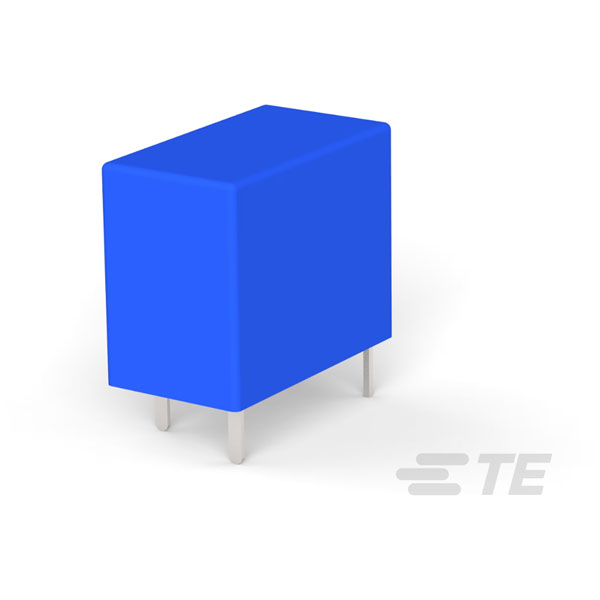

The TE Connectivity 1461400-5 is a low signal relay designed for printed circuit board mounting.

It features a single pole, single throw normally open configuration with a 5 Ampere switching capacity.

Operating at 24 Volts DC, it provides reliable performance in signal switching.

Typical applications include telecommunications, automotive electronics, and industrial control systems.


Type Signal Relay
Coil Voltage 24V DC
Contact Configuration SPST
Switching Current 5 A
Coil Resistance 1.28kR
Length 18.2mm
Width 10.2mm
Height 14.7mm
Coil Current 18.75mA
Coil Power 450mW
Coil Voltage (DC) 24v
Contact Current Rating 5a
Contact Material Silver
ELV Compliant
Max Current Rating 5a
Max Operating Temperature 85°C
Mount Through Hole
Packaging Tray
Radiation Hardening No
RoHS Compliant Yes
Termination PCB
Throw Configuration SPST
Weight 9g
