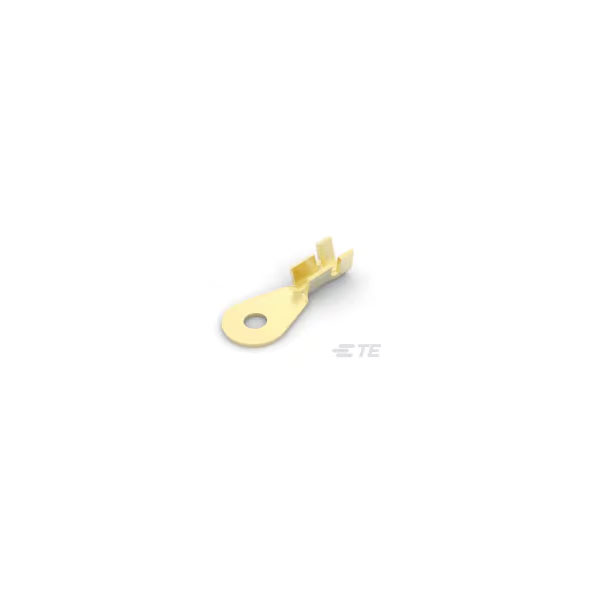

TE Connectivity 140546 Ring Tongue Terminal 18-14AWG .236X.390 TPBR

Inc VAT

Qty	Unit Price (Ex VAT)
5000+	£0.101

Sign in for personalised pricing

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 5000

Available to back orderBack-order availability date - 13/11/2026

TE Connectivity's part number 140546 is a ring tongue terminal designed for 18-14 AWG wire sizes.

It features a 0.236-inch inner diameter and a 0.390-inch stud size.

The terminal is tin-plated brass for enhanced conductivity and corrosion resistance.

This product is typically used in automotive and industrial applications for secure wire connection.

Colour	Metal
Insulated	Uninsulated
Stud Size	Not Specifiedmm
Maximum Wire Size (mm2)	2.50mm²
Barrel Type	Open
Compatible Insulation Diameter Range	.1 – .14
Contact Base Material	Brass
Contact Material	Brass
Contact Plating	Tin
Heavy Duty	No
Insulation	Non-Insulated
Insulation Diameter	3.51mm
Length	0.783inch
Material	Brass
Maximimum Wire Gauge (AWG)	14
Mount	Free Hanging
Operating Temperature Range	-40 – 230
Package Quantity	15000
Packaging	Strip
Packaging Method	Strip/Reel
Product Length	.78
Product Type	Ring Terminal
RoHS Compliant	Yes
Sealable	No
Stud Diameter	6.3mm
Terminal Orientation	Straight
Terminal Plating Material	Tin
Termination	Circular
Thickness	0.024inch
Wire Gauge (Max)	18AWG
Wire Gauge (Min)	14AWG
Wire Insulation Support	With
