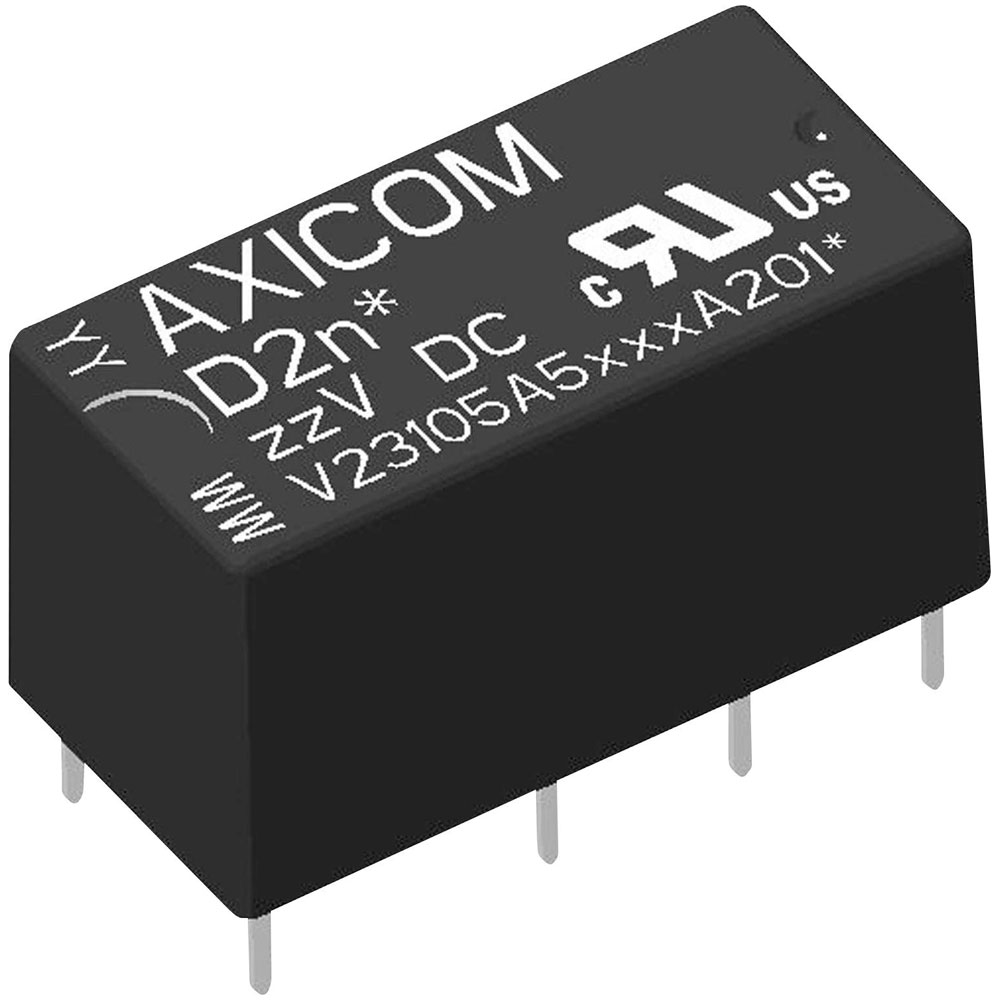

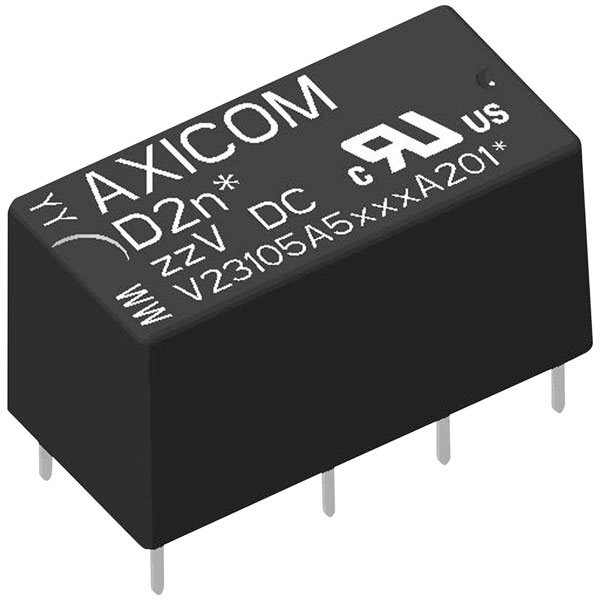

TE Connectivity 1393793-8 Industrial Relay 12V DC 2CO 1pc

Discontinued

The TE Connectivity 1393793-8 is a PCB relay with a 12VDC nonlatching coil.

It operates at 400mW and is designed for standard applications requiring reliable switching.

Key attributes include a single coil setup and compact design suitable for printed circuit boards.

Typical applications include use in consumer electronics and automotive circuits.

Coil Voltage	12V DC
Contact Configuration	2CO (DPDT)
Application(s)	SIGNAL
Approvals	cULus
Coil Current	33.33mA
Coil Power	400mW
Coil Resistance	360Ω
Coil Type	Non-Latching
Coil Voltage (DC)	12v
Connection	THT
Contact Current Rating	3a
Contact Material	Gold, Silver
Current Rating	3a
DC Rated Voltage	220v
Depth	10mm
Dimensions	(L x W x H) 20.2 x 10 x 11 mm
Height	11mm
Length	20.2mm
Max Current Rating	3a
Max Voltage Rating (AC)	250v
Max Voltage Rating (DC)	220v
Maximum Operating Temperature	75°C
Maximum Temperature	+85°C
Min Operating Temperature	-40°C
Minimum Operating Temperature	-40°C
Misc Attribute	V23105A5403A201
Mount	Through Hole, PCB
Mounting Type	PCB
Nominal Voltage	12V DC
Operate Time	5ms
Package Quantity	25
Package/Case	DIP
Packaging	Rail/Tube
Power Consumption	400mW
Radiation Hardening	No
Ratings	IP67
Reach SVHC Compliant	Unknown
Relay Type	Telecom
Release Time	4ms
RoHS Compliant	Yes
Series	V23105, AXICOM
Termination	PC Pin
Throw Configuration	DPDT
Type	Industrial relay
Voltage Rating (AC)	250v
Weight	6g
Width	10.0mm
