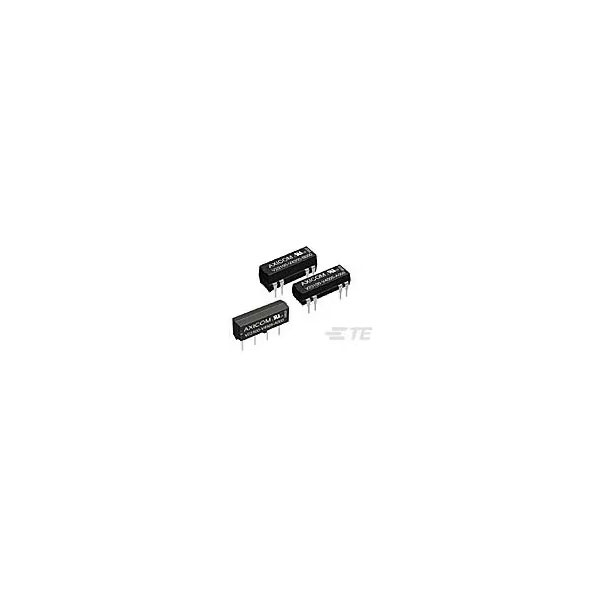

TE Connectivity 1393763-1 Reed Relay Low Signal V23100V4005A

Inc VAT

Qty	Unit Price (Ex VAT)
30+	£6.49

Sign in for personalised pricing

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 30

Available to back orderBack order, lead time 4 months

TE Connectivity's 1393763-1 is a high-quality reed relay designed for low signal applications.

It features low power consumption and a compact design, making it ideal for use in telecommunications and test equipment.

The relay offers reliable and consistent performance with a long operational lifespan.

Typical applications include signal switching in sensitive electronic circuits.

Type	Reed Relay
Switching Current	500mA
Coil Resistance	500r
Length	19.3 mm
Width	6.4 mm
Height	5.1 mm
Actuating System	DC
Approvals	UL
Coil Current	10mA
Coil Power	100mW
Coil Type	Non-Latching
Coil Voltage (DC)	5v
Contact Current Rating	500mA
Contact Material	Ruthenium
Contact Plating	Ruthenium
Contact Voltage Rating (DC)	24v
Current Rating	1a
Depth	6.4mm
ELV	Compliant
Max Current Rating	500mA
Max Voltage Rating (AC)	200v
Max Voltage Rating (DC)	200v
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Mount	Through Hole
Number of Contacts	1
Operate Time	0.75ms
Package Quantity	1250
Package/Case	DIP
Packaging	Rail/Tube
Power Consumption	288mW
Radiation Hardening	No
Ratings	IP54
Relay Type	Relay
Release Time	0.15ms
RoHS Compliant	Yes
Series	V23100-V4, AXICOM
Switching Capacity	10w
Switching Voltage	200v
Termination	Through Hole
Throw Configuration	SPST
Weight	0.0494oz
