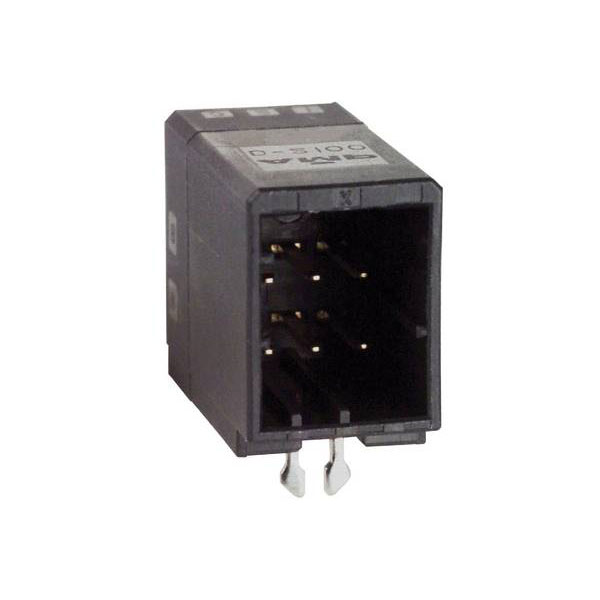

The TE Connectivity 1376136-1 is a shrouded, right-angled header with six male pins.
It offers secure connections and is designed for durability and reliability.
Typically used in electronic equipment, it facilitates easy mating with connectors.
This component is ideal for PCB applications requiring robust interconnect solutions.
| Type |
Built-in pin strip (precision) |
| Number of Positions |
6 |
| Pitch |
0.098inch |
| Number of Rows |
2 |
| Approvals |
UL |
| Case Material |
Polyester |
| Centerline (Pitch) |
2.5146mm |
| Circuit Application |
Power & Signal |
| Code |
X |
| Color |
Black |
| Colour |
Black |
| Connection |
Print |
| Connector & Contact Terminates To |
Printed Circuit Board |
| Connector & Keying Code |
X |
| Connector contact surface |
Gold plated |
| Connector Mounting Type |
Board Mount |
| Connector Product Type |
Connector Assembly |
| Connector System |
wire-to-wire |
| Connector Type |
Plug, horizontal mount |
| Contact Base Material |
Copper Alloy |
| Contact Current Rating |
5a |
| Contact Current Rating (Max) |
5 |
| Contact Finish - Mating |
GOLD |
| Contact Layout |
Matrix |
| Contact Material |
Copper alloy |
| Contact Mating Area Length |
.246 |
| Contact Mating Area Plating Material |
Gold (Au) |
| Contact Mating Area Plating Material Thickness |
15 |
| Contact Plating |
Gold |
| Contact Retention |
No (Without) |
| Contact Shape |
Rectangular |
| Contact Shape & Form |
Rectangular |
| Contact Type |
Tab |
| Contact Underplating Material |
Nickel |
| Current Rating |
5a |
| Depth |
20.19mm |
| Dimensions |
(L x W x H) 10.2 x 20.19 x 13.2 mm |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-0 |
| Gender |
Male |
| Halogen free |
Halogen Free |
| Header Type |
Fully Shrouded |
| Height |
13.2mm |
| Housing Color |
Black |
| Housing Material |
Polyester GF |
| Industrial packaging |
No |
| Insulation Color |
Black |
| Insulation Material |
Polyester |
| Lead Free |
Lead Free |
| Length |
10.2mm |
| Mating Alignment |
With |
| Mating Alignment Type |
Polarization |
| Mating Retention |
With |
| Max Operating Temperature |
221°C |
| Max Voltage Rating (AC) |
250v |
| Max Voltage Rating (DC) |
250.25kV |
| Max. temperature |
+105°C |
| Min Operating Temperature |
-67°C |
| Min. temperature |
-55°C |
| Misc Attribute |
DYNAMIC D-2100D |
| Mount |
Through Hole |
| Nominal Current |
5A |
| Number of Contacts |
6 |
| Number of Ports |
1 |
| Operating Supply Voltage |
250v |
| Operating Temperature Range |
-67 – 221 |
| Operating Voltage |
250 |
| Orientation |
Right Angle |
| Package Quantity |
46 |
| Packaging |
Rail/Tube |
| Packaging Method |
Tube |
| PCB Connector Type |
PCB Mount Header |
| PCB Contact Termination Area Plating Material |
Tin |
| PCB Mount Alignment |
Without |
| PCB Mount Orientation |
Horizontal |
| PCB Mount Retention |
With |
| PCB Mount Retention Type |
Retention Leg |
| PCB Mounting Orientation |
Right Angle |
| PCB Thickness |
0.063inch |
| PCB Thickness (Recommended) |
.063 |
| Pin shape |
Rectangular |
| Pins per row |
3 |
| Preloaded |
Yes |
| Primary Product colour |
Black |
| Reach SVHC Compliant |
No |
| RoHS Compliant |
Yes |
| Row Spacing |
3.75mm |
| Row-to-Row Spacing |
.098 |
| Sealable |
No |
| Selectively Loaded |
No (Without) |
| Series |
DYNAMIC 2000 Series |
| Shielding |
Unshielded |
| Shrouded |
Yes (With) |
| Strain Relief |
No (Without) |
| Tail Length |
0.134inch |
| Termination |
Solder |
| Termination Method to PCB |
Through Hole - Solder |
| Termination Post & Tail Length |
.134 |
| UL Flammability Rating |
UL 94V-0 |
| VDE Tested |
No |
| Voltage Rating |
250v |
| Voltage Rating (AC) |
250v |
| Width |
20.19mm |
