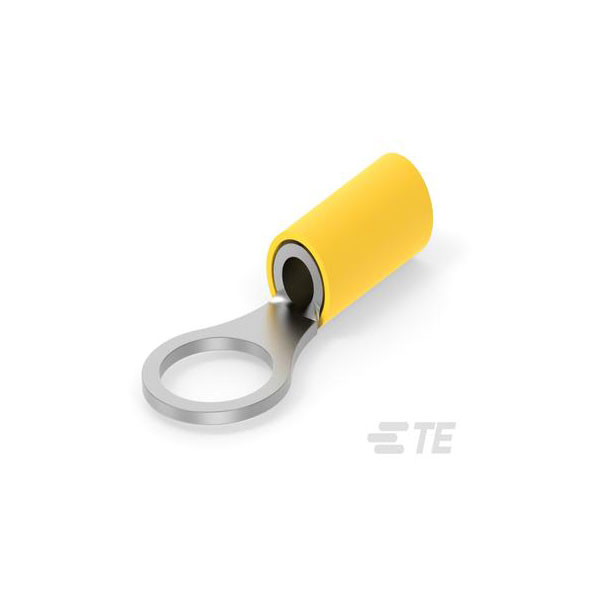

TE Connectivity's 130207 ring terminal is designed for 12-10 AWG wire sizes with an M10 stud size.
It features a reliable crimp connection for secure electrical connections.
Ideal for automotive, industrial, and commercial applications, it ensures robust and durable performance.
Made from high-quality materials, this ring terminal offers corrosion resistance and longevity.
| Colour |
Yellow |
| Insulated |
Partially Insulated |
| Stud Size |
10mm |
| Maximum Wire Size (mm2) |
6mm² |
| Barrel Type |
Closed |
| Color |
Yellow |
| Compatible Insulation Diameter Range |
.15 – .252 |
| Contact Material |
Copper |
| Contact Plating |
Tin |
| ELV |
Compliant |
| Government Qualified |
No |
| Heavy Duty |
No |
| Insulated Wire Support |
Yes |
| Insulation |
Insulated |
| Insulation Color |
Yellow |
| Insulation Diameter |
6.4mm |
| Insulation Material |
Nylon |
| Lead Free |
Not Applicable |
| Length |
33.8mm |
| Material |
Copper |
| Maximimum Wire Gauge (AWG) |
10 |
| Mount |
Free Hanging |
| Number of Holes |
1 |
| Operating Temperature Range |
0 – 221 |
| Package Quantity |
500 |
| Packaging |
Loose Piece |
| Packaging Method |
Loose Piece |
| Packaging Quantity |
500 |
| Plating |
Tin |
| Plating Thickness |
2.54um |
| Product Length |
1.331 |
| Product Type |
Ring Terminal |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
No |
| RoHS Compliant |
Yes |
| Sealable |
No |
| Series |
PIDG |
| Stud Diameter |
0.406inch |
| Terminal Orientation |
Straight |
| Terminal Plating Material |
Tin |
| Termination |
Crimp |
| Thickness |
0.039inch |
| Tongue Thickness |
0.039inch |
| Voltage Rating (AC) |
300v |
| Wire Gauge (Max) |
12AWG |
| Wire Gauge (Min) |
10AWG |
| Wire Insulation Support |
With |
| Wire/Cable Diameter |
0.25inch |
