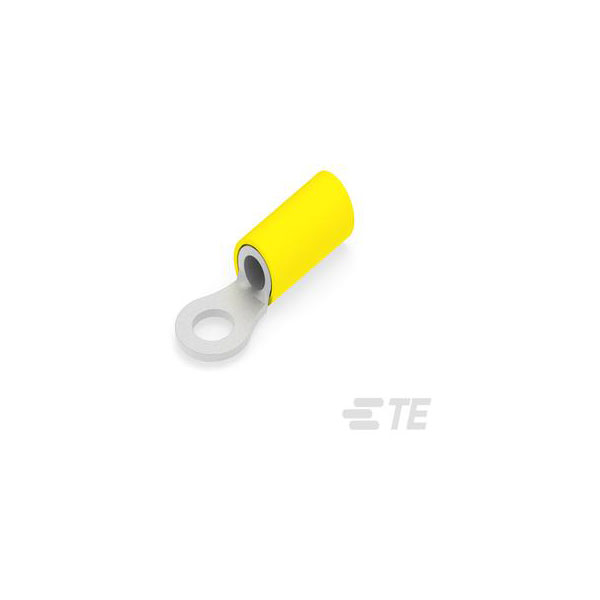

The TE Connectivity 130171 tube terminal is designed for 12-10 AWG wires and offers an M5 unshrouded design.
It provides a reliable connection for electrical applications requiring secure termination.
The terminal features high conductivity and durability, suitable for industrial and automotive environments.
Its typical application includes connecting electrical wires in control panels and distribution networks.
| Colour |
Yellow |
| Insulated |
Partially Insulated |
| Stud Size |
5mm |
| Maximum Wire Size (mm2) |
6mm² |
| Barrel Type |
Closed |
| Color |
Yellow |
| Compatible Insulation Diameter Range |
.15 – .25 |
| Contact Material |
Copper, Silver |
| Contact Plating |
Tin |
| ELV |
Compliant |
| Government Qualified |
No |
| Heavy Duty |
No |
| Insulated Wire Support |
Yes |
| Insulation |
Insulated |
| Insulation Diameter |
6.35mm |
| Insulation Material |
Nylon |
| Lead Free |
Not Applicable |
| Length |
1.09inch |
| Material |
Copper, Tin, PVC |
| Maximimum Wire Gauge (AWG) |
10 |
| Mount |
Free Hanging |
| Number of Holes |
1 |
| Operating Temperature Range |
0 – 221 |
| Package Quantity |
500 |
| Packaging |
Loose Piece |
| Packaging Method |
Loose Piece |
| Packaging Quantity |
500 |
| Plating |
Tin |
| Product Length |
1.09 |
| Product Type |
Tube Terminal |
| Radiation Hardening |
No |
| RoHS Compliant |
Yes |
| Sealable |
No |
| Series |
PIDG |
| Stud Diameter |
0.207inch |
| Terminal Orientation |
Straight |
| Terminal Plating Material |
Tin |
| Termination |
Crimp |
| Tongue Thickness |
0.039inch |
| Voltage Rating (AC) |
300v |
| Wire Gauge (Max) |
12AWG |
| Wire Gauge (Min) |
10AWG |
| Wire Insulation Support |
With |
| Wire/Cable Diameter |
0.248inch |
