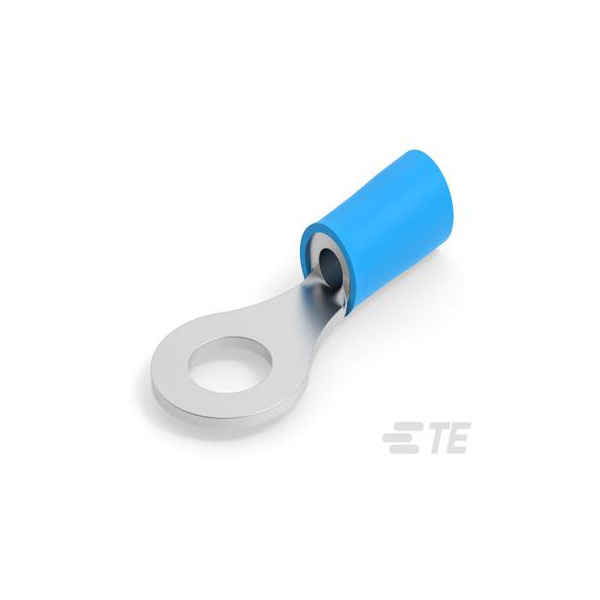

TE Connectivity 130114 Terminals PIDG Ring Tongue Insulated Crimp

Inc VAT

Qty	Unit Price (Ex VAT)
250+	£0.584

Sign in for personalised pricing

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 250

Despatched within 5 working days - 10,048 in stock

The TE Connectivity 130114 is a crimp terminal with a PIDG ring tongue design.

It features an insulated body for electrical safety and a durable metal construction for reliable connections.

Commonly used in automotive and industrial applications, it is suitable for wire termination and grounding.

Its design ensures easy installation and secure attachment to electrical devices.

Colour	Blue
Insulated	Partially Insulated
Stud Size	Not Specifiedmm
Maximum Wire Size (mm2)	2.50mm²
Barrel Type	Closed
Color	Blue
Compatible Insulation Diameter Range	.106 – .15
Contact Material	Copper
Contact Plating	Tin
Government Qualified	No
Heavy Duty	No
Insulated Wire Support	Yes
Insulation	Insulated
Insulation Diameter	0.15inch
Insulation Material	Nylon
Length	27.51mm
Maximimum Wire Gauge (AWG)	14
Mount	Free Hanging
Number of Holes	1
Operating Temperature Range	0 – 221
Package Quantity	1000
Packaging	Loose Piece
Packaging Method	Loose Piece
Packaging Quantity	1000
Plating	Tin
Plating Thickness	2.54um
Product Length	1.083
Product Type	Ring Terminal
RoHS Compliant	Yes
Sealable	No
Series	PIDG
Stud Diameter	6.35mm
Terminal Orientation	Straight
Terminal Plating Material	Tin
Termination	Crimp
Tongue Thickness	0.78mm
Wire Gauge (Max)	16AWG
Wire Gauge (Min)	14AWG
Wire Insulation Support	With
Wire/Cable Diameter	3.8mm
