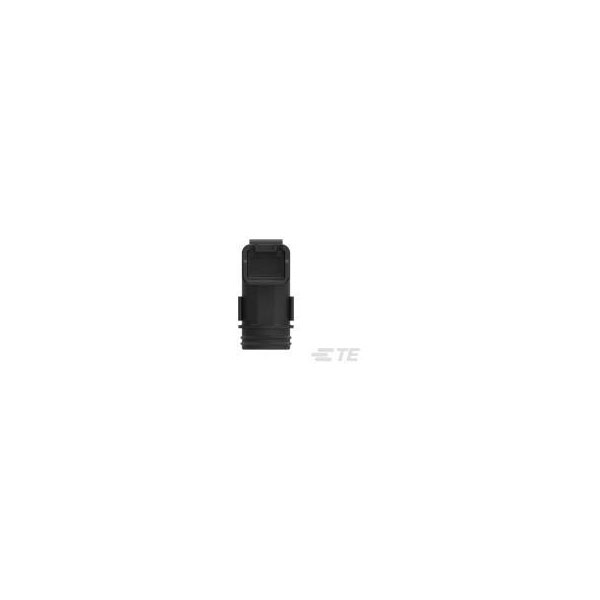

TE Connectivity 1011-256-0205 DT End Cap 90° 2-Pin Round Connector

TE Connectivity
Order Code:

07-3289

Brand: TE Connectivity MPN: 1011-256-0205 EAN-13: 2050003953108
Qty Unit Price (Ex VAT)
2+ £3.11
50+ £2.81
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
131 in stock, despatched in 4 working days

TE Connectivity manufactures the Bullet connector end cap DT Series, model number 1011-256-0205. This connector features two pins and is characterised by a 90-degree design with strain relief. It is typically used in applications requiring robust electrical connections and environmental protection.
Type Bullet connector end cap
Number of Contacts 2
Gender Male
Body Material Plastic
Cable Ø (max.) 7.6mm
Cable Ø range 5.2 - 7.6 mm
Cable Ø up to 5.2mm
Case Material Thermoplastic material
Color Black
Colour Black
Compatible Cable Diameter Range .236 – .394
Connection Angle 90°
Cross Section 2 mm² (max)
Current Rating 13A
Flammability Rating UL94 HB
IP Rating IP6K9K
Max Operating Temperature 125°C
max. cross section 2mm²
Max. temperature +85°C
Min Operating Temperature -55°C
Min. temperature -40°C
Nominal Voltage 1500V AC
Number of Positions 2
Operating Temperature (Max) 257
Operating Temperature Range -67 – 257
Package Quantity 1000
Packaging Box
Packaging Method Box
Packaging Quantity 1000
Primary Product colour Black
Primary Product Material PA GF
Reach SVHC Compliant Unknown
RoHS Compliant Yes
Sealable No
Series DT
Serviceable Yes
Strain Relief Yes (With)
UL Flammability Rating UL 94HB
Wire Gauge (AWG) 20 - 14
