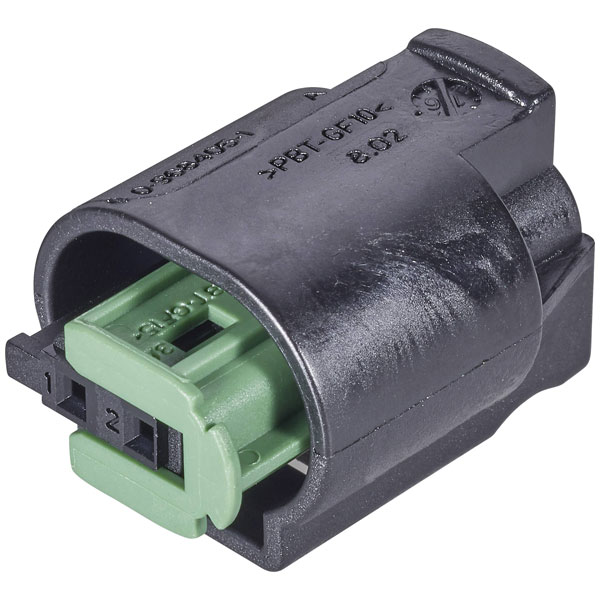

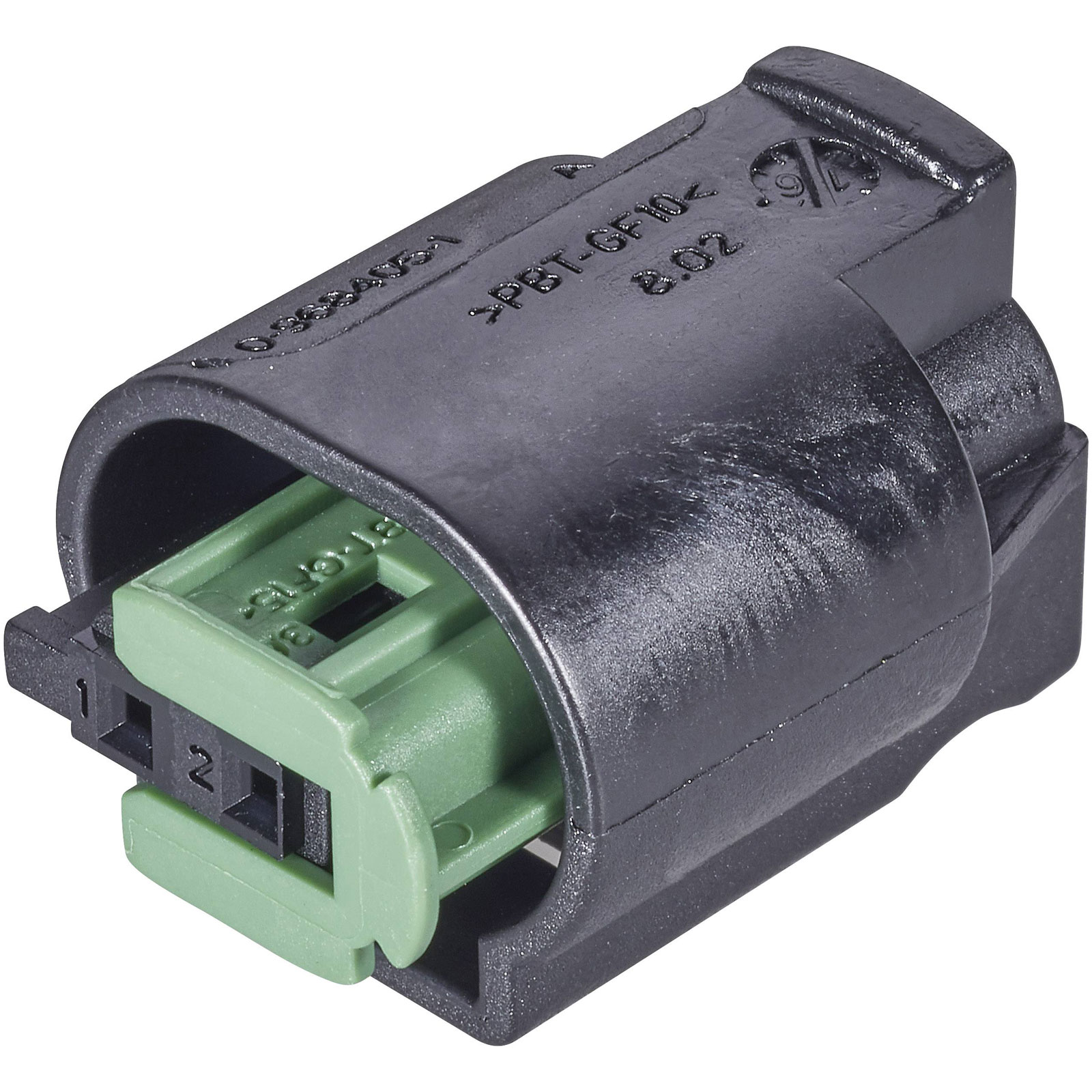

TE Connectivity 1-967642-1 AMP MQS Socket Housing Cable 3-Pin

The TE Connectivity Socket Housing Cable, AMP MQS, features a total of three pins and is commonly used in automotive and industrial applications. Manufactured by TE Connectivity, this socket housing cable is designed for reliable electrical connections. It is a durable component suitable for environments requiring secure and efficient wiring solutions.

Type	Socket, straight
Number of Contacts	3
Gender	Socket
Number of Rows	2
Body Material	PBT
Case Material	Polybutylene
Circuit Application	Signal
Colour	Black
Connector contact surface	Tin plated
Connector System	automotive
Contact Gender	Female
Contact Type	Female Socket
Depth	24.2mm
Dimensions	(L x W x H) 20 x 24.2 x 24.2 mm
ELV	Compliant
Height	24.2mm
Housing Color	Black
Hybrid Connector	No
Industrial packaging	No
IP Rating	IPX9K
Lead Free	Not Applicable
Length	20mm
Mating Tab Width	0.025inch
Max Voltage Rating (AC)	50v
Maximum Operating Temperature	248°C
Maximum Temperature	+120°C
Min. temperature	-40°C
Minimum Operating Temperature	-40°C
Mount	Free Hanging
Orientation	Straight
Package Quantity	3800
Packaging	Bag
Pins per row	3
Pitch	3.1mm
Polarized	Yes
Radiation Hardening	No
RoHS Compliant	Yes
Row Spacing	0.232inch
Sealable	Yes (With)
Series	AMP MQS
Serviceable	No
Strain Relief	No (Without)
Termination	Crimp
Width	24.2mm
Wire Gauge (AWG)	17AWG
