TE Connectivity 1-770166-1 Mini-Universal-MATE-N-LOK 2-Pin PCB Socket

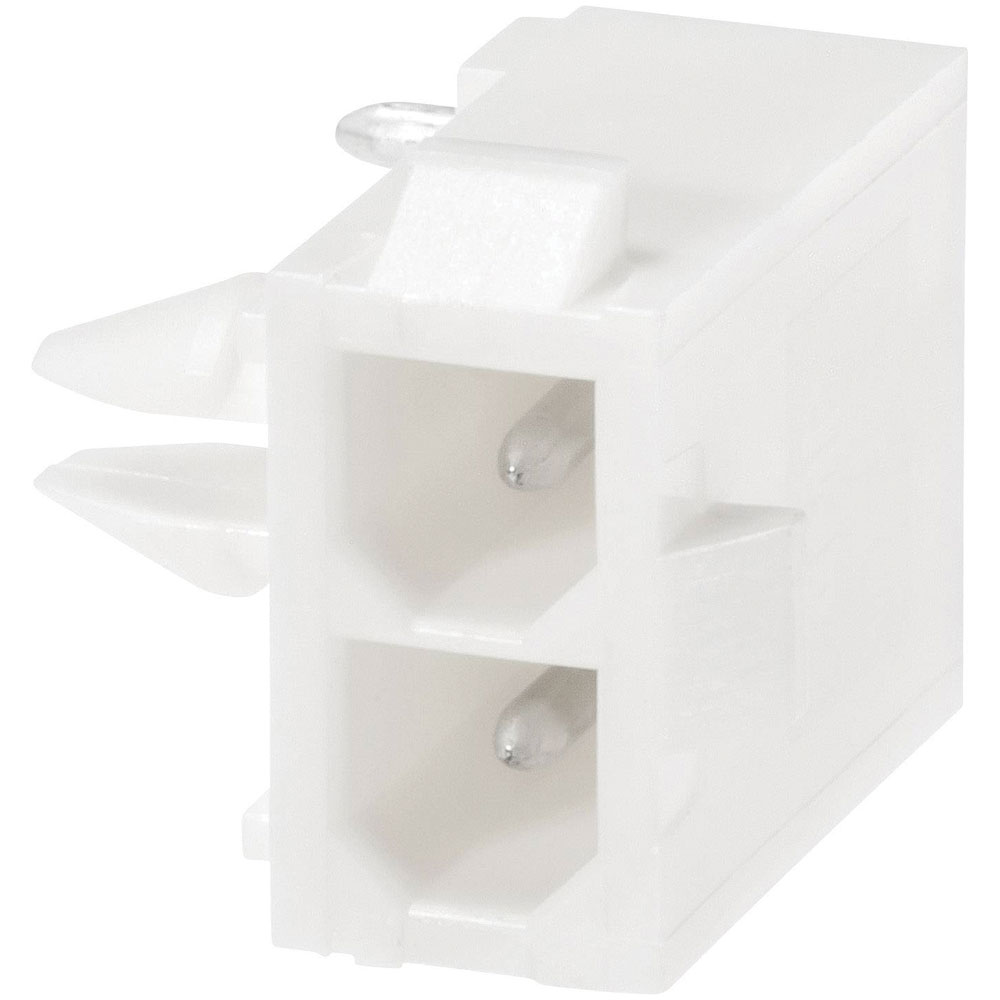

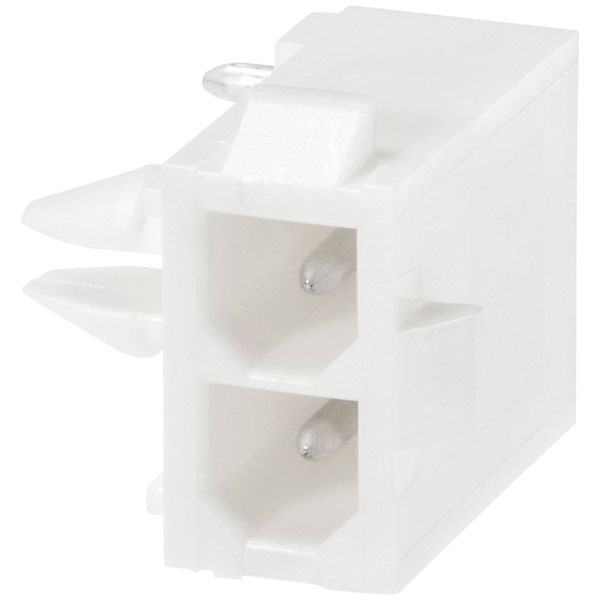

Image Representative of Range

TE Connectivity 1-770166-1 Mini-Universal-MATE-N-LOK 2-Pin PCB Socket

TE Connectivity
Order Code:

07-3863

Brand: TE Connectivity MPN: 1-770166-1 EAN-13: 2050002432055
Qty Unit Price (Ex VAT)
5+ £1.11
125+ £0.913
250+ £0.829
500+ £0.782
1250+ £0.775
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
49 in stock, despatched in 4 working days

TE Connectivity manufactures the Pin housing PCB Mini-Universal-MATE-N-LOK with a total of two pins, identified with the part number 1-770166-1. This component provides secure and reliable power or signal connections and is typically used in a variety of electronic and electrical applications. Its design allows for easy integration onto printed circuit boards (PCBs).
No. of Rows 1
No. of Ways 2
AWG (min.) 30
AWG max. 16
Board contact surface Tin plated
Case Material Polyamide
Centerline (Pitch) .162
Circuit Application Power
Compatible With Agency/Standards Products CSA
Compatible With Approved Standards Products UL E28476
Connection Print
Connector & Contact Terminates To Printed Circuit Board
Connector Contact Load Condition Fully Loaded
Connector contact surface Gold plated
Connector Height .531
Connector Length .539
Connector Mounting Type Board Mount
Connector Product Type Connector Assembly
Connector System wire-to-wire
Connector Type Plug, vertical mount
Connector Width .25
Contact Base Material Brass
Contact Current Rating (Max) 9.5
Contact Finish Copper alloy
Contact Layout Inline
Contact Mating Area Plating Material Gold (Au)
Contact Mating Area Plating Material Thickness 30
Contact Shape & Form Round
Contact Type Pin
Contact Underplating Material Nickel
Contact Underplating Material Thickness 50
Dim (L x W x H) 6.35 x 17.94 x 13.69 mm
Factory colour White
Glow Wire Rating Standard Part - Not Glow Wire
Header Type Fully Shrouded
Height 13.69mm
Housing Material Nylon
Industrial packaging No
Insulation Material Polyamide
Length 6.35mm
Mating Alignment With
Mating Alignment Type Chamfered Edges
Mating Retention With
Mating Retention Type Locking Tab
Max. temperature +105°C
Min. temperature -55°C
Misc Attribute Mini-Universal MATE-N-LOK
Nominal Current 9.50A
Nominal current - rounded value 9.5A
Nominal Voltage 600V AC
Number of Columns 2
Number of Positions 2
Number of Power Positions 2
Number of Rows 1
Operating Temperature (Max) 221
Operating Temperature Range -67 – 221
Operating Voltage 600
Packaging Method Bag
Packaging Quantity 200
Panel Mount Feature Without
PCB Connector Type PCB Mount Header
PCB Contact Termination Area Plating Material Tin
PCB Contact Termination Area Plating Material Finish Matte
PCB Contact Termination Area Plating Material Thickness 150 – 350
PCB Mount Alignment Without
PCB Mount Orientation Vertical
PCB Mount Retention With
PCB Mount Retention Type Boardlock
PCB Thickness (Recommended) .062
Pin shape Circular
Pins per row 2
Primary Product Color White
Sealable No
Series Mini-Universal-MATE-N-LOK
Termination Method to PCB Through Hole - Solder
Termination Post & Tail Length .145
Type Pin housing PCB
UL Flammability Rating UL 94V-0
UL Rating Recognized
Width 17.94mm
